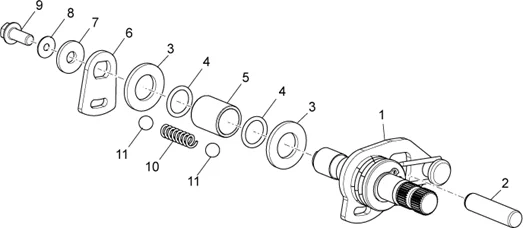

Moteur : 29.44 COMMANDE BTE VIT.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/745/NA_850_Mana_GT_2009-2013_29.44.PNG)
1 |
854521 - COMMANDE BTE VIT. More informationQuantity required : 1 |
||||||
|
2 |
871346 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/9/img/71909.jpg)
3 |
AP8152018 - RONDELLE FER PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
4 |
AP8144007 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
5 |
851847 - BAGUE More informationQuantity required : 1 |
||||||
|
6 |
851849 - PLAQUE More informationQuantity required : 1 |
||||||
|
7 |
224664 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/4/img/97084.jpg)
8 |
AP8150272 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
9 |
AP8152272 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
10 |
874597 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
11 |
BALL Ø6,35 - FOR FOOTREST "PIAGGIO GENUINE PART" APRILIA DORSODURO 750-900-1200, RS 50-125, RSV4 1000, TUONO 1000/ MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE -AP8101861 More informationQuantity required : 2 |
