Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana GT 2009-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

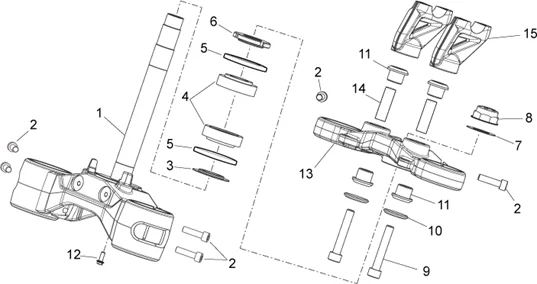

Chassis : 28.04 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/745/NA_850_Mana_GT_2009-2013_28.04.PNG)
1 |
CM222602 - PLAQUE INF. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
2 |
SCREW - ON FORK UPPER PLATE M8X30 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA/MOTO-GUZZI -AP8150540 More informationQuantity required : 6 |
||||||
|
3 |
AP8121307 - RONDELLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/7/img/45837.jpg)
4 |
AP8110106 - CUSCINETTO A RULLINI CONICI More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/1/img/71231.jpg)
5 |
GASKET RING FOR STEERING COLUMN "PIAGGIO GENUINE PART" APRILIA 50-125 RX, SX, RS, TUONO, 750 DORSODURO, 600-650 PEGASO -AP8104597 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/8/2/img/72082.jpg)
6 |
NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 750 V7, BREVA, NEVADA -AP8163500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/5/img/71985.jpg)
7 |
AP8152442 - RONDELLA TAPPO CANNOTTO More informationQuantity required : 1 |
||||||
|
8 |
853470 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
9 |
AP8150049 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/6/3/img/108963.jpg)
10 |
AP8123721 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/4/img/71754.jpg)
11 |
AP8144222 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
12 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
|
13 |
856498 - PLAQUE SUP. FOURCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/9/3/img/39893.jpg)
14 |
854827 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
15 |
854815 - CAVALIER INF. GUIDON More informationQuantity required : 2 |
