Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana GT 2009-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

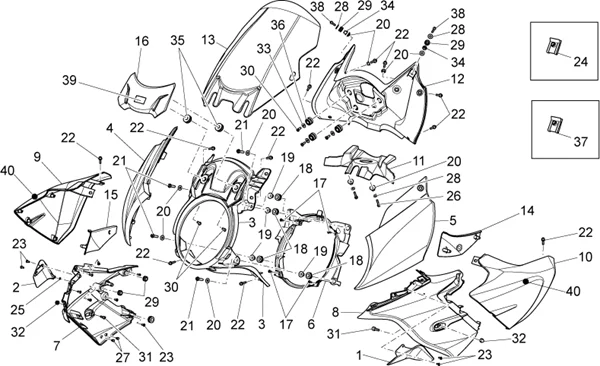

Chassis : 28.54 CARROSSERIE AV. - COUPOLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/745/NA_850_Mana_GT_2009-2013_28.54.PNG)
1 |
894007 - DEFLECTEUR GAUCHE More informationQuantity required : 1 |
|||||||||
|
2 |
894006 - DEFLECTEUR DOITRE More informationQuantity required : 1 |
|||||||||
|
3 |
89094300XE8 - TABLIER, GRIS More informationQuantity required : 1 |
|||||||||
|
4 |
89094400BM - COUVERCLE, BLANC More informationQuantity required : 1 |
|||||||||
|
4 |
89094400XD2 - COUVERCLE, BLEU More informationQuantity required : 1 |
|||||||||
|
4 |
89094400XN2 - COUVERCLE, NOIR More informationQuantity required : 1 |
|||||||||
|
4 |
89094400XR7 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
4 |
89094400YA3 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
5 |
89094500BM - COUVERCLE, BLANC More informationQuantity required : 1 |
|||||||||
|
5 |
89094500XD2 - COUVERCLE, BLEU More informationQuantity required : 1 |
|||||||||
|
5 |
HEADLIGHT COVER - LEFT "PIAGGIO GENUINE PART" APRILIA 850 MANA 2009>2016 NOIR COMPETITION -89094500XN2- More informationQuantity required : 1 |
|||||||||
|
5 |
89094500XR7 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
5 |
89094500YA3 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
6 |
890942 - SUPPORT PHARE More informationQuantity required : 1 |
|||||||||
|
7 |
89094600XE8 - CARENE LAT. D, GRIS More informationQuantity required : 1 |
|||||||||
|
8 |
89094700XE8 - CARENE LAT. G, GRIS More informationQuantity required : 1 |
|||||||||
|
9 |
89094800BM - CONVOYEUR D, BLANC More informationQuantity required : 1 |
|||||||||
|
9 |
89094800XD2 - CONVOYEUR D, BLEU More informationQuantity required : 1 |
|||||||||
|
9 |
89094800XN2 - CONVOYEUR D, NOIR More informationQuantity required : 1 |
|||||||||
|
9 |
890948 - CONVOYEUR D More informationQuantity required : 1 |
|||||||||
|
9 |
89094800YA3 - CONVOYEUR D. More informationQuantity required : 1 |
|||||||||
|
10 |
89094900BM - CONVOYEUR G, BLANC More informationQuantity required : 1 |
|||||||||
|
10 |
89094900XD2 - CONVOYEUR G, BLEU More informationQuantity required : 1 |
|||||||||
|
10 |
89094900XN2 - CONVOYEUR G, NOIR More informationQuantity required : 1 |
|||||||||
|
10 |
89094900XR7 - CONVOYEUR G More informationQuantity required : 1 |
|||||||||
|
10 |
89094900YA3 - CONVOYEUR G. More informationQuantity required : 1 |
|||||||||
|
11 |
890950 - PROTECTION BLOQUE-DIRECTION More informationQuantity required : 1 |
|||||||||
|
12 |
DASHBOARD BACK SUPPORT "PIAGGIO GENUINE PART" APRILIA 850 MANA 2009>2016 BLANC GLAM -890953- More informationQuantity required : 1 |
|||||||||
|
13 |
WIND SHIELD "PIAGGIO GENUINE PART" APRILIA 850 MANA 2009>2016 -895248- More informationQuantity required : 1 |
|||||||||
|
14 |
894003 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
15 |
894004 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
16 |
894005 - COUVERCLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
17 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
18 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
19 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
20 |
AP8121032 - DOUILLE More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
21 |
AP8152280 - VIS BRIDE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
22 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
22 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
23 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 18 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
24 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
25 |
AP8144565 - RONDELLA IN NYLON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/6/img/71916.jpg)
26 |
AP8152136 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/6/img/72286.jpg)
27 |
AP8220488 - CAOUTCHOUC CHAMPIGNON; More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
28 |
AP8152181 - RONDELLE FER PLATE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
29 |
AP8112600 - CAOUTCHOUC More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
30 |
AP8150509 - VIS TARAUD 5X14 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
31 |
SCREW - (6X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8150137 More informationQuantity required : 2 |
|||||||||
|
32 |
AP8150474 - ECROU BORGNE INOX More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
33 |
AP8150382 - RONDELLE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
34 |
AP8121795 - DOUILLE EN T More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/1/img/73481.jpg)
35 |
GU32577910 - RUBBER BUFFER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
36 |
AP8220150 - CAOUTCHOUC More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
37 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
38 |
AP8152117 - VIS More informationQuantity required : 2 |
|||||||||
|
39 |
890003 - PLAQUE More informationQuantity required : 1 |
|||||||||
|
40 |
854903 - PLAQUETTE More informationQuantity required : 2 |
|||||||||
