Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana GT 2009-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

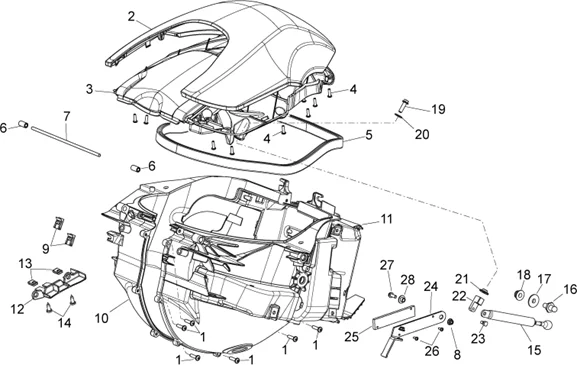

Chassis : 28.09 CARROSSERIE CENTRALE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/745/NA_850_Mana_GT_2009-2013_28.09.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
1 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/9/1/5/img/40915.jpg)
2 |
HELMET COMPARTMENT COVER "PIAGGIO GENUINE PART" APRILIA 850 NA-MANA WHITE -86043800BM More informationQuantity required : 1 |
||||||
2 |
86043800XD2 - COUVERCLE More informationQuantity required : 1 |
||||||
|
2 |
86043800XN2 - COUVERCLE PORTE-CASQUE More informationQuantity required : 1 |
||||||
|
2 |
86043800XR7 - COUVERCLE More informationQuantity required : 1 |
||||||
|
2 |
86043800YA3 - COUVERCLE PORTE-CASQUE More informationQuantity required : 1 |
||||||
|
3 |
860439 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413 More informationQuantity required : 14 |
||||||
|
5 |
851941 - JOINT More informationQuantity required : 1 |
||||||
|
6 |
854797 - MOYEU LOGEMENT CASQUE More informationQuantity required : 2 |
||||||
|
7 |
854796 - PIVOT LOGEMENT CASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
8 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
|
10 |
890380 - LOGEMENT CASQUE More informationQuantity required : 1 |
||||||
|
11 |
HELMET COMPARTMENT "PIAGGIO GENUINE PART" APRILIA 850 MANA -890381 More informationQuantity required : 1 |
||||||
|
12 |
852295 - SUPPORT CENTRALE More informationQuantity required : 1 |
||||||
|
13 |
AP8201764 - CLIP POUR VIS TARAUD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/4/img/50874.jpg)
14 |
AP8150426 - VIS More informationQuantity required : 2 |
||||||
|
15 |
851922 - AMORTISSEUR LOGEMENT CASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/5/4/img/39854.jpg)
16 |
854578 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/0/img/71400.jpg)
17 |
AP8120508 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
18 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
19 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
20 |
AP8152181 - RONDELLE FER PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
21 |
AP8121075 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
|
22 |
858151 - FOURCHETTE More informationQuantity required : 1 |
||||||
|
23 |
858152 - PIVOT FOURCHE More informationQuantity required : 1 |
||||||
|
24 |
858385 - BRIDE More informationQuantity required : 1 |
||||||
|
25 |
858386 - PATIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
26 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
27 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
28 |
AP8121728 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
