Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana GT 2009-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

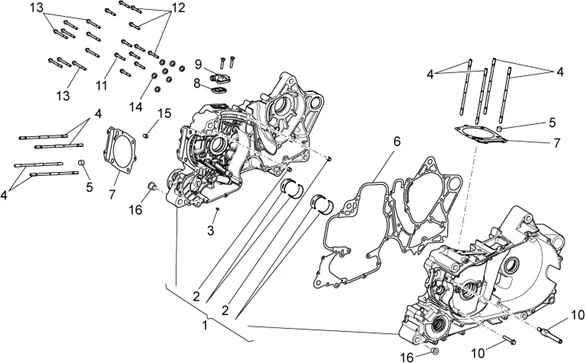

Moteur : 29.31 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/745/NA_850_Mana_GT_2009-2013_29.31.PNG)
1 |
8780735001 - CARTER MOTEUR More informationQuantity required : 1 |
||||||
|
1 |
8780735002 - CARTER MOTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
2 |
CENTERING PIN (11X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B015957 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/9/img/66669.jpg)
3 |
484993 - PIVOT DE CENTR. More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/6/img/109026.jpg)
4 |
1A003631R - GOUJON More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
5 |
JET FOR OIL PIPE ON CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO-GUZZI MOTORBIKES+ MAXISCOOTER 400-500 CC -825597 More informationQuantity required : 2 |
||||||
|
6 |
872509 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/3/img/68903.jpg)
7 |
CYLINDER BASE GASKET- 0,8MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -830275 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/4/img/68904.jpg)
7 |
CYLINDER BASE GASKET- (0,6MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 -830276 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/5/img/68905.jpg)
7 |
CYLINDER BASE GASKET- 0,4MM "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 -830277 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/5/img/68695.jpg)
8 |
82778R - SUPPORT More informationQuantity required : 1 |
||||||
|
9 |
873810 - COUVERCLE More informationQuantity required : 1 |
||||||
|
10 |
849439 - PIVOT More informationQuantity required : 1 |
||||||
|
11 |
874746 - VIS More informationQuantity required : 6 |
||||||
|
12 |
874747 - VIS More informationQuantity required : 11 |
||||||
|
13 |
874748 - VIS More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
14 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
15 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956 More informationQuantity required : 3 |
||||||
|
16 |
AP8123934 - CAOUTCHOUC; More informationQuantity required : 2 |
