Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana GT 2009-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

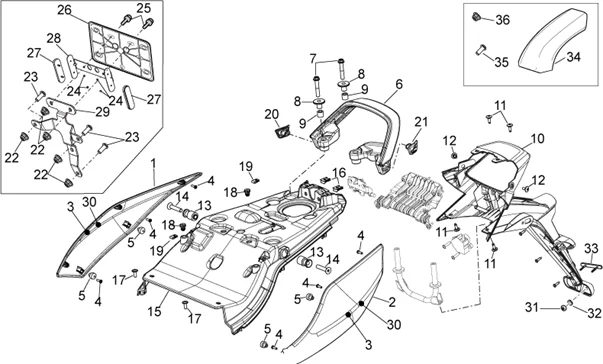

Chassis : 28.13 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/745/NA_850_Mana_GT_2009-2013_28.13.PNG)
1 |
Queue D, noir |
|||||||||
|
1 |
85193600BM - QUEUE D, BLANC More informationQuantity required : 1 |
|||||||||
|
1 |
85193600XD2 - QUEUE D, BLEU More informationQuantity required : 1 |
|||||||||
|
1 |
85193600XR7 - QUEUE D, ROUGE More informationQuantity required : 1 |
|||||||||
|
1 |
85193600YA3 - QUEUE D, BLEU More informationQuantity required : 1 |
|||||||||
|
2 |
85193700BM - QUEUE D, BLANC More informationQuantity required : 1 |
|||||||||
|
2 |
85193700XD2 - QUEUE G, BLEU More informationQuantity required : 1 |
|||||||||
|
2 |
85193740XN2 - QUEUE G, NOIRE More informationQuantity required : 1 |
|||||||||
|
2 |
85193700XR7 - QUEUE G, ROUGE More informationQuantity required : 1 |
|||||||||
|
2 |
85193700YA3 - QUEUE G. More informationQuantity required : 1 |
|||||||||
|
3 |
856099 - MONOGRAMME More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/6/img/71746.jpg)
5 |
RUBBER SPACER "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA/MOTO-GUZZI MOTORBIKES -AP8144081 More informationQuantity required : 4 |
|||||||||
|
6 |
85181400XEE - POIGNEE GRISE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
7 |
AP8152291 - VIS BRIDE More informationQuantity required : 2 |
|||||||||
|
8 |
AP8221056 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/9/9/4/img/51994.jpg)
9 |
AP8161085 - DISTANZIALE 8,2X14X12,5 More informationQuantity required : 2 |
|||||||||
|
10 |
851938 - PORTE-PLAQUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
11 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
11 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
12 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500 More informationQuantity required : 2 |
|||||||||
|
13 |
GU06467300 - GOUJON More informationQuantity required : 2 |
|||||||||
|
14 |
GU98250835 - VIS M8X35 More informationQuantity required : 2 |
|||||||||
|
15 |
852767 - COUVERCLE RESERVOIR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
16 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
17 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/7/img/71747.jpg)
18 |
AP8144087 - CAOUTCHOUC AVANT LATERAL; More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
19 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409 More informationQuantity required : 2 |
|||||||||
|
20 |
858154 - BOUCHON POIGNEE More informationQuantity required : 1 |
|||||||||
|
21 |
858153 - BOUCHON POIGNEE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
22 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 5 |
|||||||||
|
23 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
24 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/6/img/97096.jpg)
25 |
AP8152342 - VIS BRIDE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
26 |
NUMBER PLATE SUPPORT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI + MAXISCOOTER APRILIA -AP8149034 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/9/img/71569.jpg)
27 |
AP8124719 - CATADIOPTRE, AMBRE More informationQuantity required : 2 |
|||||||||
|
28 |
AP8134677 - SUPPORT CATADIOPTRE; More informationQuantity required : 1 |
|||||||||
|
29 |
855071 - SUPPORT PLAQUE + CATADIOPTRE USA More informationQuantity required : 1 |
|||||||||
|
30 |
893697 - PLAQUE More informationQuantity required : 2 |
|||||||||
|
31 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.jpg)
32 |
AP8150159 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
33 |
UPPER SPEEDOMETER COVER "PIAGGIO GENUINE PART" 50-125 FLY 2012> -5A000001 More informationQuantity required : 1 |
|||||||||
|
34 |
Protection |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.jpg)
35 |
AP8152274 - VIS BRIDE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
36 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 3 |
|||||||||
