Vehicle Exploded View - APRILIA MX 125 Super Motard 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

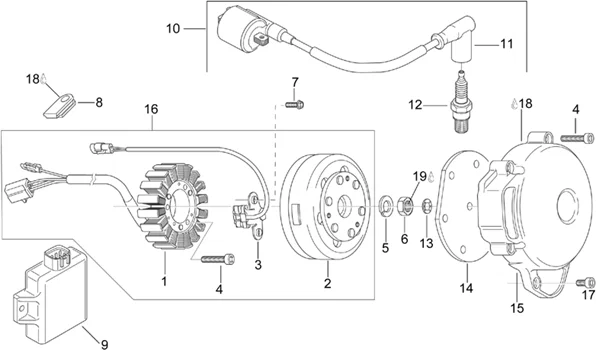

Moteur : 29.40 ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/692/MX_125_Super_Motard_2004-2006_29.40.PNG)
1 |
AP0295670 - STATOR COMPLET More informationQuantity required : 1 |
||||||
|
2 |
AP0295675 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
|
3 |
AP0265157 - PICK-UP EXT.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/2/4/img/44524.jpg)
4 |
AP0840880 - VIS More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/6/1/7/img/44617.jpg)
5 |
AP0945754 - RONDELLE FENDUE More informationQuantity required : 1 |
||||||
|
6 |
AP0242516 - ECROU More informationQuantity required : 1 |
||||||
|
7 |
AP0941925 - VIS TE SPECIALE More informationQuantity required : 2 |
||||||
|
8 |
AP0260840 - CAOUTCHOUC CACHE-FIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/0/6/0/img/44060.jpg)
9 |
DIGITAL UNIT "PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2010, TUONO 2003>2004, MX 2004>2006 -AP0265402- More informationQuantity required : 1 |
||||||
|
10 |
AP0265415 - BOBINE HT; More informationQuantity required : 1 |
||||||
|
11 |
AP0866708 - PIPE BOUGIE NOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/0/0/img/71100.jpg)
12 |
SPARK PLUG NGK BR10EG "PIAGGIO GENUINE PART" GILERA 50-125 RS, RX, SX -AP0297830- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/9/7/img/69897.jpg)
12 |
SPARK PLUG BR8ES "PIAGGIO GENUINE PART" APRILIA 50-125 RS/MOTO- GUZZI 750 BREVA, NEVADA -861612- More informationQuantity required : 1 |
||||||
|
13 |
AP0245750 - BAGUE SEEGER More informationQuantity required : 2 |
||||||
|
14 |
AP0260250 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
15 |
AP0211581 - COPERCHIO VOLANO More informationQuantity required : 1 |
||||||
|
16 |
AP0295360 - ALLUMAGE More informationQuantity required : 1 |
||||||
|
17 |
AP0841336 - VITE TCEI M6X12 More informationQuantity required : 2 |
||||||
|
18 |
AP0297386 - SILASTIC 732 RTV More informationQuantity required : 1 |
||||||
|
19 |
AP0899788 - LOCTITE VERTE More informationQuantity required : 1 |
