Vehicle Exploded View - APRILIA MX 125 Super Motard 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

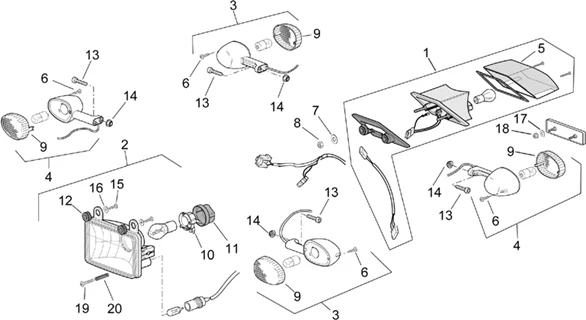

Chassis : 28.25 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/692/MX_125_Super_Motard_2004-2006_28.25.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/5/9/img/45859.jpg)
1 |
TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 50-125 RX, SX, MX, 50 PEGASO, TUAREG -AP8112531- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/3/img/97073.jpg)
2 |
HEADLAMP "PIAGGIO GENUINE PART" APRILIA 450-550 RXV, SXV, 50-125 MX 2004>2006 -AP8127741- More informationQuantity required : 1 |
||||||
3 |
AP8224580 - INDICATORE DI DIREZIONE More informationQuantity required : 2 |
||||||
|
4 |
AP8224581 - INDICATORE DI DIREZIONE More informationQuantity required : 2 |
||||||
|
5 |
AP8112633 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
6 |
AP8127123 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
7 |
AP8150015 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
8 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/9/9/8/img/47998.jpg)
9 |
AP8127122 - VITRE CLIGNOTANT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/1/img/72331.jpg)
10 |
BULB HOLDER - FOR HEADLAMP "PIAGGIO GENUINE PART" APRILIA 50-125 MX 2004>, 50 MOJITO -AP8224609- More informationQuantity required : 1 |
||||||
|
11 |
AP8224610 - CUFFIA FANALE ANT. More informationQuantity required : 1 |
||||||
|
12 |
AP8224611 - GOMMINO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
13 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
14 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
|
15 |
AP8150318 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
16 |
AP8150013 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.JPG)
17 |
AP8150011 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
18 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
|
19 |
AP8150415 - VIS More informationQuantity required : 1 |
||||||
|
20 |
AP8221198 - RESSORT REGLAGE PHARE More informationQuantity required : 1 |
