Vehicle Exploded View - APRILIA MX 125 Super Motard 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

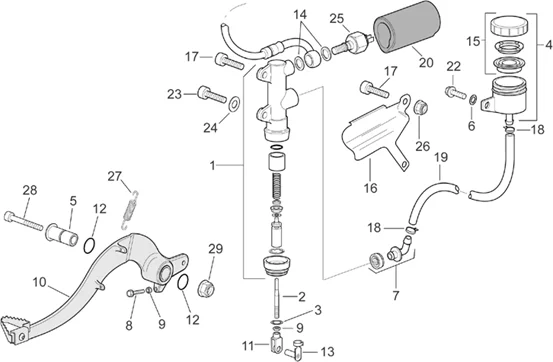

Chassis : 28.23 POMPE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/692/MX_125_Super_Motard_2004-2006_28.23.PNG)
1 |
AP8113359 - MA?T.CYL. FREIN AR More informationQuantity required : 1 |
||||||
|
2 |
AP8121842 - POUSSOIR CDE MAI-CYL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/7/img/71387.JPG)
3 |
AP8120178 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
4 |
AP8133873 - SERBATOIO OLIO FRENI More informationQuantity required : 1 |
||||||
|
5 |
AP8121809 - DOUILLE More informationQuantity required : 1 |
||||||
|
6 |
AP8150021 - RONDELLE EVENT.EXT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.JPG)
7 |
AP8213057 - RACCORD POMPE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
8 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
9 |
AP8150026 - ECROU More informationQuantity required : 2 |
||||||
|
10 |
AP8135287 - LEVIER FREI ARR. COMPLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/7/img/71287.jpg)
11 |
FORK FOR REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" COMMON TO APRILIA/ MOTO-GUZZI MOTORBIKES RANGE -AP8113081- More informationQuantity required : 1 |
||||||
|
12 |
AP8120538 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/8/img/71288.jpg)
13 |
CLIP FOR GEARBOX SELECTOR "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD, 750 DORSODURO/MOTO-GUZZI V7, STELVIO, GRISO -AP8113082- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
14 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/6/img/71306.jpg)
15 |
CAP FOR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 125 MX, RS, 650 PEGASO, 1000 RSN-2, 1200 CAPONORD, DORSODURO -AP8113553- More informationQuantity required : 1 |
||||||
|
16 |
AP8131792 - PROTECTION TUYAU FREIN ARRIERE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
17 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
18 |
AP8101595 - COLLIER More informationQuantity required : 2 |
||||||
|
19 |
AP8120808 - TUYAU More informationQuantity required : 1 |
||||||
|
20 |
AP8102289 - PROTECTION INTERRUPTEUR STOP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
22 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
23 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
24 |
658830 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/9/8/img/47498.jpg)
25 |
STOP LIGHT SWITCH - ON REAR MASTER CYLINDER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, MX, TUONO -AP8124479- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
26 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/6/img/71436.jpg)
27 |
AP8121126 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
28 |
AP8150277 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
29 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 1 |
