Vehicle Exploded View - APRILIA MX 125 Super Motard 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

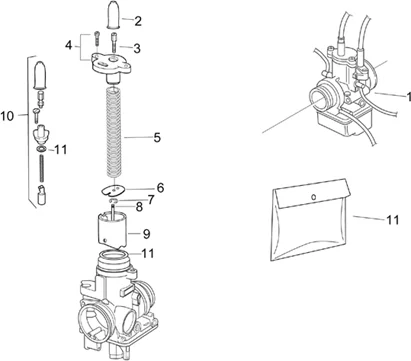

Moteur : 29.17 CARBURATEUR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/692/MX_125_Super_Motard_2004-2006_29.17.PNG)
1 |
AP8176090 - CARBURATORE More informationQuantity required : 1 |
||||||
|
1 |
AP8176097 - CARBURATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/0/7/img/68507.jpg)
2 |
813174 - CACHE CARBU More informationQuantity required : 1 |
||||||
|
3 |
AP8222631 - VIS TENDEUR DE FIL More informationQuantity required : 1 |
||||||
|
4 |
AP8106783 - KIT COUV. CHAMBRE MELANGE More informationQuantity required : 1 |
||||||
|
5 |
AP8106785 - RESSORT RAPPEL SOUP.GAZ More informationQuantity required : 1 |
||||||
|
6 |
AP8106786 - PLAQUE RET.AGRAFE POINTEAU More informationQuantity required : 1 |
||||||
|
7 |
AP8222674 - AGRAFE POINTEAU CONIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/6/3/6/img/45636.jpg)
8 |
NEEDLE FOR CARB (25/3A") OUTPUT 11KW "PIAGGIO GENUINE PART" APRILIA 125 RS 1999>2010, TUONO, MX -AP8106779- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/3/5/1/2/img/53512.jpg)
8 |
NEEDLE FOR CARB (2/2") FULL POWER "PIAGGIO GENUINE PART" APRILIA 125 RS 1999>2010, TUONO, MX -AP8176043- More informationQuantity required : 1 |
||||||
|
9 |
CARB THROTTLE VALVE "PIAGGIO GENUINE PART" APRILIA 125 RS 1999>2010, MX 2004>2006 -AP8106778- More informationQuantity required : 1 |
||||||
|
9 |
AP8106963 - SOUPAPE GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/6/3/9/img/45639.jpg)
10 |
MANUAL CHOKE "PIAGGIO GENUINE PART" APRILIA 125 RS 1999>2010, TUONO 2003>2004, MX 2004>2006 -AP8106784- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/6/4/7/img/45647.jpg)
11 |
GASKET KIT FOR CARB "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, MX -AP8106796- More informationQuantity required : 1 |
