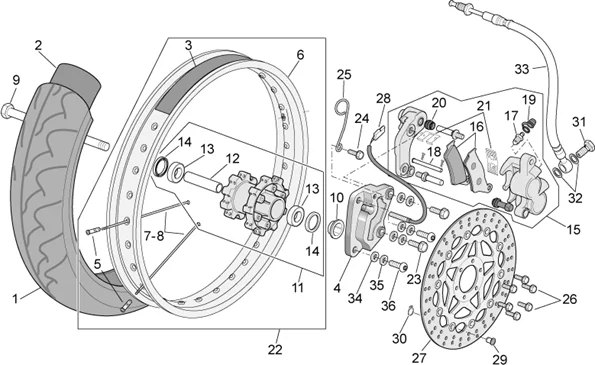

Chassis : 28.21 ROUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/692/MX_125_Super_Motard_2004-2006_28.21.PNG)
3 |
AP8109281 - FLAP RUOTA POSTERIORE 17 More informationQuantity required : 1 |
||||||
|
5 |
AP8108672 - NIPPLES More informationQuantity required : 36 |
||||||
|
6 |
AP8128053 - CERCHIO ANTERIORE ANODIZZ. More informationQuantity required : 1 |
||||||
|
7 |
AP8128054 - RAGGIO ANTERIORE D.3,5 More informationQuantity required : 18 |
||||||
|
8 |
AP8128078 - RAGGIO ANTER.D.3,5 LATO DISCO More informationQuantity required : 18 |
||||||
|
9 |
AP8225394 - PERNO RUOTA ANTERIORE More informationQuantity required : 1 |
||||||
|
10 |
AP8125578 - ENTRETOISE ROUE AVANT More informationQuantity required : 1 |
||||||
|
11 |
AP8125916 - MOZZO ANTERIORE GRIGIO More informationQuantity required : 1 |
||||||
|
13 |
AP8110045 - ROULEMENT MOYEU More informationQuantity required : 2 |
||||||
|
14 |
AP8125589 - JOINT SPY AVANT GAUCHE More informationQuantity required : 2 |
||||||
|
15 |
AP8113580 - ETRIER FREIN AVANT 2X More informationQuantity required : 1 |
||||||
|
16 |
AP8113593 - PLAQUETTES More informationQuantity required : 1 |
||||||
|
17 |
AP8133518 - PURGE AIR; More informationQuantity required : 1 |
||||||
|
18 |
AP8133517 - PIVOT AVEC GOUPILLE; More informationQuantity required : 1 |
||||||
|
19 |
AP8113230 - CAPUCHON RENIFLARD (20 PCS) More informationQuantity required : 1 |
||||||
|
20 |
AP8113548 - COIFFE More informationQuantity required : 2 |
||||||
|
21 |
AP8123550 - RESSORT + PLAQUE More informationQuantity required : 1 |
||||||
|
22 |
AP8128097 - RUOTA ANT.NUDA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
23 |
SCREW - (8X30) MULTI PURPOSE "PIAGGIO GENUINE PART" -AP8152288- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
24 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
|
25 |
AP8161007 - ANELLO GUIDA TUBO FRENO ANT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
26 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286- More informationQuantity required : 6 |
||||||
|
27 |
AP8113567 - DISQUE FREIN AVANT More informationQuantity required : 1 |
||||||
|
28 |
AP8224573 - SENSORE MAGNETICO More informationQuantity required : 1 |
||||||
|
29 |
AP8127596 - ASSIEME MAGNETE More informationQuantity required : 1 |
||||||
|
30 |
AP8104743 - ANELLO SEEGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
31 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
32 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
|
33 |
AP8133660 - TUBO FRENO ANTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
34 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
35 |
AP8150017 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/2/img/67372.jpg)
36 |
599208 - VIS More informationQuantity required : 2 |
