Vehicle Exploded View - APRILIA MX 125 Super Motard 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

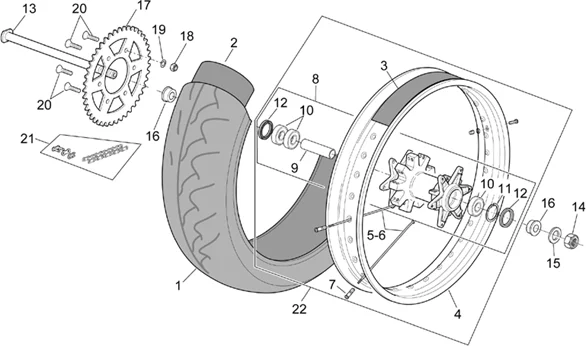

Chassis : 28.22 ROUE AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/692/MX_125_Super_Motard_2004-2006_28.22.PNG)
3 |
AP8109281 - FLAP RUOTA POSTERIORE 17 More informationQuantity required : 1 |
||||||
|
4 |
AP8128057 - CERCHIO RUOTA POSTERIORE More informationQuantity required : 1 |
||||||
|
5 |
AP8128054 - RAGGIO ANTERIORE D.3,5 More informationQuantity required : 18 |
||||||
|
6 |
AP8128055 - RAGGIO ANTERIORE D.3,5 More informationQuantity required : 18 |
||||||
|
7 |
AP8108672 - NIPPLES More informationQuantity required : 36 |
||||||
|
8 |
AP8125707 - MOYEU AR GRIS; More informationQuantity required : 1 |
||||||
|
9 |
AP8125477 - ENTRETOISE ROULEMENTS More informationQuantity required : 1 |
||||||
|
10 |
AP8110045 - ROULEMENT MOYEU More informationQuantity required : 3 |
||||||
|
11 |
AP8125784 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/0/8/img/47708.jpg)
12 |
SEAL RING GASKET- FOR REAR WHEEL HUB "PIAGGIO GENUINE PART" APRILIA 125 SX, RX, MX, 125-650 PEGASO -AP8125462- More informationQuantity required : 2 |
||||||
|
13 |
AP8125579 - AXE DE ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/6/img/50876.jpg)
14 |
AP8150433 - ECROU AUTOFR. BAS More informationQuantity required : 1 |
||||||
|
15 |
AP8152063 - RONDELLE More informationQuantity required : 1 |
||||||
|
16 |
AP8125580 - ENTRETOISE ROUE ARRIERE More informationQuantity required : 2 |
||||||
|
17 |
AP8107128 - COURONNE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
18 |
AP8150431 - ECROU AUTOFR. BAS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
19 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/8/img/71928.jpg)
20 |
AP8152196 - VIS FHC More informationQuantity required : 6 |
||||||
|
21 |
AP8107104 - CHAINE COMP.MAILLE More informationQuantity required : 1 |
||||||
|
22 |
AP8128098 - RUOTA POST.NUDA More informationQuantity required : 1 |
