Vehicle Exploded View - APRILIA MX 125 Super Motard 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

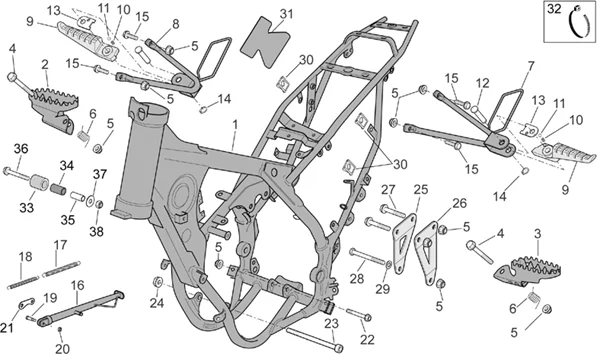

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/692/MX_125_Super_Motard_2004-2006_28.01.PNG)
1 |
AP8146816 - TELAIO V.CON CATAFORESI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/1/3/5/img/50135.jpg)
2 |
RIGHT RIDER FOOTREST "PIAGGIO GENUINE PART" APRILIA 50-125 RX, SX -AP8146819- More informationQuantity required : 1 |
||||||
|
3 |
LEFT RIDER FOOTREST "PIAGGIO GENUINE PART" APRILIA 50-125 RX, SX -AP8146821- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
4 |
AP8152291 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
5 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 11 |
||||||
|
6 |
AP8101317 - RES.RAP. PLAN. PIL. More informationQuantity required : 2 |
||||||
|
7 |
AP8146859 - SUPPORTO PEDANA PASSEGGERO SX More informationQuantity required : 1 |
||||||
|
8 |
AP8146860 - SUPPORTO PEDANA PASSEGGERO DX More informationQuantity required : 1 |
||||||
|
9 |
PASSENGER FOOTREST (PAIR) "PIAGGIO GENUINE PART" 50-125 RS, TUONO, MX, FUTURA -AP8132812- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
10 |
FOOTREST COMPRESS SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8121133- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
11 |
BALL Ø6,35 - FOR FOOTREST "PIAGGIO GENUINE PART" APRILIA DORSODURO 750-900-1200, RS 50-125, RSV4 1000, TUONO 1000/ MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE -AP8101861- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/1/0/img/71710.jpg)
12 |
AP8134829 - PIVOT REPOSE-PIEDS; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/6/9/1/img/48691.jpg)
13 |
AP8132720 - PLAQUE FDC R-PIED; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
14 |
AP8152409 - ANNEAU D'ARR?T RAD. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
15 |
AP8152287 - VIS BRIDE More informationQuantity required : 4 |
||||||
|
16 |
AP8146823 - CAVALLETTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
17 |
AP8221197 - RESSORT RAPPEL BEQ. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/4/1/img/46841.jpg)
18 |
AP8121482 - RESS.RETOUR BEQ.INT. More informationQuantity required : 1 |
||||||
|
19 |
AP8161006 - VITE CAVALLETTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
20 |
NUT - FOR SIDE STAND (10X1,25) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA /MOTO-GUZZI -AP8152001- More informationQuantity required : 1 |
||||||
|
21 |
AP8134266 - PLAQUETTE RETOUR BEQUILLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/5/img/71955.jpg)
22 |
AP8152293 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
23 |
AP8150438 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
24 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
25 |
AP8135715 - PLAQUE CYLINDER-CHASSIS D; More informationQuantity required : 1 |
||||||
|
26 |
AP8135716 - PLAQUE CYLINDER-CHASSIS G; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/4/img/71954.jpg)
27 |
AP8152292 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
29 |
AP8150017 - RONDELLE More informationQuantity required : 1 |
||||||
|
30 |
AP8101985 - RECEPTACLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.JPG)
32 |
AP8120657 - COLLIER More informationQuantity required : 1 |
||||||
|
33 |
AP8101704 - ROULETTE TENDEUR DE CHA?NE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/5/img/46725.jpg)
34 |
AP8121092 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/3/img/45093.jpg)
35 |
AP8101108 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
36 |
AP8152293 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
37 |
AP8150018 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
38 |
AP8150431 - ECROU AUTOFR. BAS More informationQuantity required : 1 |
