Vehicle Exploded View - MOTO-GUZZI GT 1000 1987-1991
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

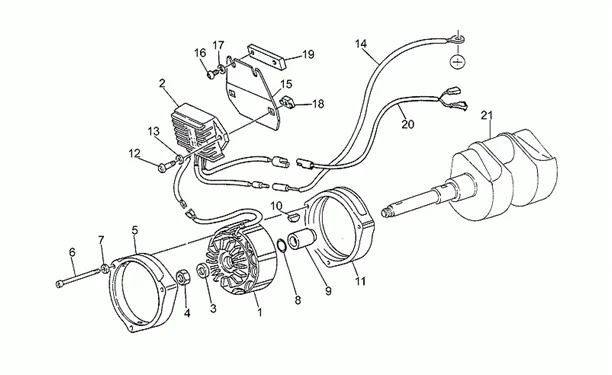

Moteur : 34.41 GÉNÉRATEUR DUCATI
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/493/GT_1000_1987-1991_34.41.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/7/3/img/131873.jpg)
2 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, 1000 QUOTA, STRADA, V75, V10, V11, 1100 CALIFORNIA, SPORT -GU37703805- More informationQuantity required : 1 |
||||||
3 |
GU30714201 - RONDELLE More informationQuantity required : 1 |
||||||
|
4 |
GU92602512 - ECROU BAS M12X1,25 More informationQuantity required : 1 |
||||||
|
4 |
GU92606516 - ECROU More informationQuantity required : 1 |
||||||
|
5 |
GU29711460 - CALOTTE AV. More informationQuantity required : 1 |
||||||
|
6 |
GU98620265 - VIS More informationQuantity required : 3 |
||||||
|
7 |
GU29217960 - RONDELLE 5,9X3X0,8 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/2/img/132222.jpg)
8 |
GU90706178 - JOINT TORIQUE 17,86X2,62 More informationQuantity required : 1 |
||||||
|
9 |
GU37712306 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/7/4/img/132374.jpg)
10 |
GU91600450 - CLAVETTE More informationQuantity required : 1 |
||||||
|
11 |
GU29711960 - CALOTTE ARRIERE CHROMEE More informationQuantity required : 1 |
||||||
|
12 |
GU98230620 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
13 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 2 |
||||||
|
15 |
GU29704060 - PLAQUE SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
17 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
18 |
GU92660601 - ECROU EN CAGE More informationQuantity required : 2 |
||||||
|
19 |
GU17451750 - PLAQUETTE More informationQuantity required : 1 |
