Vehicle Exploded View - MOTO-GUZZI GT 1000 1987-1991
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

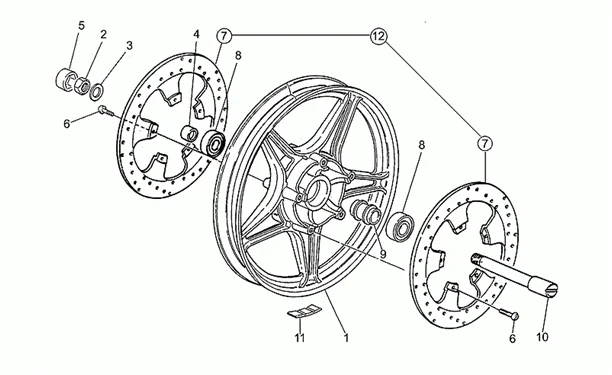

Chassis : 33.23 ROUE AV ALLIAGE-2E SÉRIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/493/GT_1000_1987-1991_33.23.PNG)
2 |
GU92602516 - ECROU M16X1,5 More informationQuantity required : 1 |
||||||
|
3 |
GU95004217 - RONDELLE 17X27X2 More informationQuantity required : 1 |
||||||
|
4 |
GU17616360 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
5 |
GU62616800 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/8/0/img/132980.jpg)
6 |
GU98230825 - VIS More informationQuantity required : 10 |
||||||
|
8 |
GU92204221 - ROULEMENT More informationQuantity required : 2 |
||||||
|
9 |
GU17615360 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
10 |
GU17614160 - AXE DE ROUE AV. More informationQuantity required : 1 |
||||||
|
11 |
GU14616150 - CONTREPOIDS More informationQuantity required : 1 |
