Vehicle Exploded View - MOTO-GUZZI GT 1000 1987-1991
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

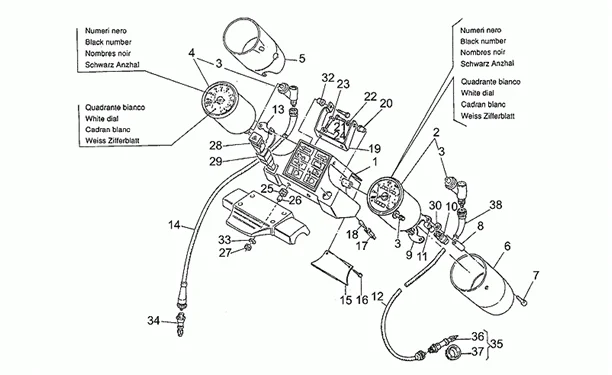

Chassis : 33.06 T DE BORD SERIE BLANC
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/493/GT_1000_1987-1991_33.06.PNG)
1 |
Boîtier tableau de bord cpl. |
||||||
|
2 |
GU14761570 - COMPTEUR KILOMETRIQUE MHP More informationQuantity required : 1 |
||||||
|
3 |
GU19762810 - POUSSOIR RAZ More informationQuantity required : 1 |
||||||
|
4 |
|
||||||
|
5 |
BOITIER PORTE-INSTR. |
||||||
|
6 |
|
||||||
|
7 |
GU98622214 - VIS More informationQuantity required : 2 |
||||||
|
8 |
GU23765110 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
9 |
GU23764910 - PLAQUE More informationQuantity required : 1 |
||||||
|
10 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
11 |
294131 - AMPOULE 12V 3W More informationQuantity required : 2 |
||||||
|
12 |
GU28760410 - TRANSMISSION TACHYMETRE More informationQuantity required : 1 |
||||||
|
13 |
GU23766510 - PLAQUE More informationQuantity required : 1 |
||||||
|
14 |
GU28768150 - TRANSMISSION COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
15 |
Couvercle inférieure |
||||||
|
16 |
GU99210210 - VIS TARAUD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/0/5/img/129705.jpg)
17 |
BULB HOLDER - DASHBOARD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU19768680- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
18 |
LIGHT BULB - INDICATOR LIGHT 12V-1/2W "PIAGGIO GENUINE PART" BEVERLY, X7, LIBERTY, ZIP, VESPA GTS/MOTO-GUZZI -164634- More informationQuantity required : 8 |
||||||
|
19 |
GU23764110 - CAVALIER More informationQuantity required : 1 |
||||||
|
20 |
GU23766910 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
21 |
GU98054230 - VIS More informationQuantity required : 2 |
||||||
|
22 |
GU95004205 - RONDELLE More informationQuantity required : 2 |
||||||
|
23 |
GU98054322 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
24 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
25 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
26 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
27 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
28 |
Turn indicator switch |
||||||
|
29 |
GU35755780 - CAPUCHON More informationQuantity required : 1 |
||||||
|
30 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
32 |
GU23766911 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
33 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 2 |
||||||
|
34 |
GU14769200 - RENVOI Z=14 More informationQuantity required : 1 |
||||||
|
35 |
GU14762510 - RENVOI Z5/11 More informationQuantity required : 1 |
||||||
|
36 |
|
||||||
|
37 |
|
||||||
|
38 |
GU17762200 - GAINE More informationQuantity required : 2 |
