Vehicle Exploded View - MOTO-GUZZI GT 1000 1987-1991
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

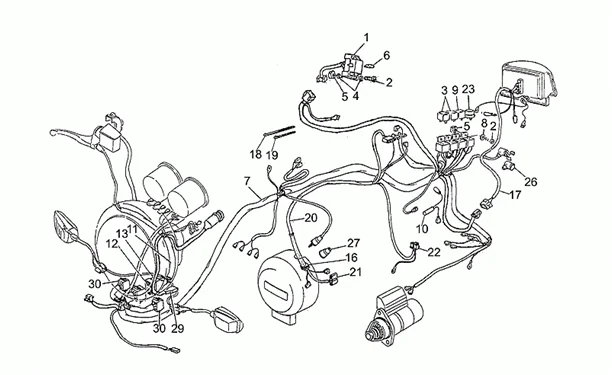

Chassis : 33.15 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/493/GT_1000_1987-1991_33.15.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.JPG)
4 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 2 |
||||||
5 |
GU92660501 - ECROU EN CAGE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
6 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860- More informationQuantity required : 6 |
||||||
|
8 |
GU95004205 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/5/8/img/73458.JPG)
9 |
GU29732550 - INTERRUPTEUR BEQUILLE More informationQuantity required : 1 |
||||||
|
12 |
GU14756251 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
16 |
GU19007700 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
18 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 1 |
||||||
|
19 |
GU49609601 - COLLIER 2,4X92 More informationQuantity required : 1 |
||||||
|
21 |
GU61712500 - CONNECTEUR 3 VIE More informationQuantity required : 2 |
||||||
|
22 |
GU61712600 - CONNECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
23 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 1 |
||||||
|
26 |
GU12735100 - CAPUCHON More informationQuantity required : 1 |
||||||
|
27 |
GU12717600 - CAPUCHON More informationQuantity required : 1 |
||||||
|
29 |
GU17756060 - CAPUCHON More informationQuantity required : 1 |
