Vehicle Exploded View - MOTO-GUZZI GT 1000 1987-1991
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

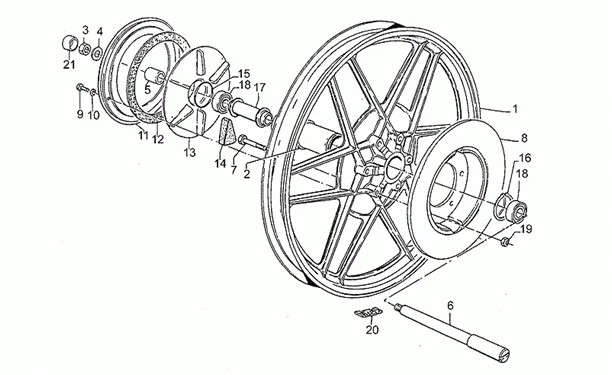

Chassis : 33.26 ROUE AR ALLIAGE-1E SÉRIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/493/GT_1000_1987-1991_33.26.PNG)
2 |
GU14632250 - MOYEU More informationQuantity required : 1 |
||||||
|
3 |
GU92602316 - ECROU M6X1,5 More informationQuantity required : 1 |
||||||
|
4 |
GU14634400 - RONDELLE More informationQuantity required : 1 |
||||||
|
5 |
GU17634150 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
9 |
GU98054320 - VIS M6X20 More informationQuantity required : 3 |
||||||
|
11 |
GU14335650 - BRIDE More informationQuantity required : 1 |
||||||
|
12 |
GU14335350 - BAGUE More informationQuantity required : 1 |
||||||
|
13 |
GU14335203 - DISQUE PIECE EN CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
14 |
GU01336800 - PARASTRAPPI More informationQuantity required : 12 |
||||||
|
15 |
GU90706490 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
16 |
GU90271055 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
17 |
GU14634050 - ENTRETOISE INTERNE ROULEMENTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/2/img/132402.jpg)
18 |
ROULEMENT DE ROUE (20X47X14) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU92204220- More informationQuantity required : 2 |
||||||
|
19 |
GU92630508 - ECROU More informationQuantity required : 6 |
||||||
|
20 |
GU14616150 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
21 |
GU62616800 - BOUCHON More informationQuantity required : 1 |
