Vehicle Exploded View - MOTO-GUZZI GT 1000 1987-1991
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

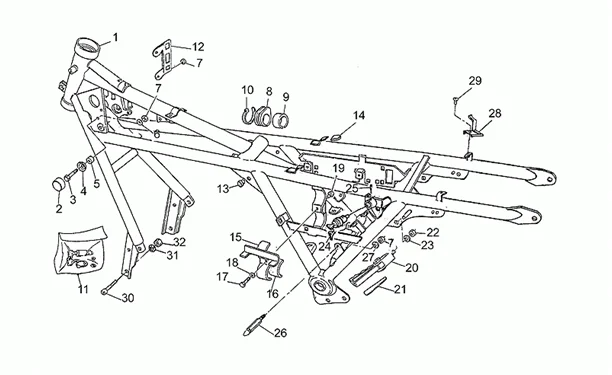

Chassis : 33.31 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/493/GT_1000_1987-1991_33.31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/8/6/img/131886.jpg)
2 |
FRAME PAD "PIAGGIO GENUINE PARTS" COMMON FOR MOTO-GUZZI RANGE -GU39103400- More informationQuantity required : 2 |
||||||
3 |
GU98054325 - VIS More informationQuantity required : 2 |
||||||
|
4 |
GU391035005 - DISQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
6 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
||||||
|
7 |
GU92630106 - ECROU M6X1 More informationQuantity required : 6 |
||||||
|
9 |
GU28109040 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
10 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 4 |
||||||
|
13 |
GU93180080 - BOUCHON More informationQuantity required : 4 |
||||||
|
14 |
GU29461450 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
17 |
GU98054318 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
18 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
19 |
GU19705900 - TAMPON More informationQuantity required : 3 |
||||||
|
22 |
GU92630108 - ECROU More informationQuantity required : 1 |
||||||
|
23 |
GU95004208 - RONDELLE More informationQuantity required : 1 |
||||||
|
27 |
GU95000206 - RONDELLE More informationQuantity required : 2 |
||||||
|
31 |
GU95022112 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
32 |
GU92602312 - ECROU More informationQuantity required : 2 |
