Vehicle Exploded View - MOTO-GUZZI GT 1000 1987-1991
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

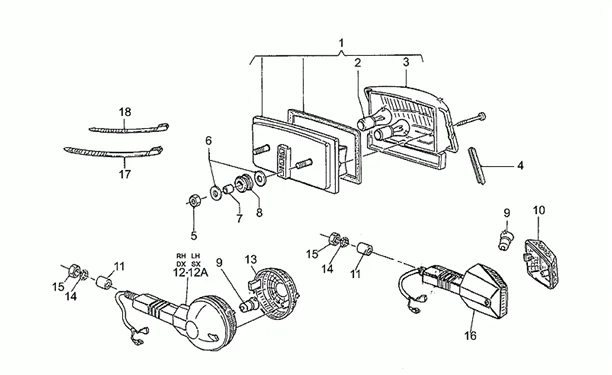

Chassis : 33.08 FEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/493/GT_1000_1987-1991_33.08.PNG)
2 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 2 |
||||||
|
5 |
GU92630206 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
6 |
GU95100118 - RONDELLE 6,2X18X1 More informationQuantity required : 2 |
||||||
|
7 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
8 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
9 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
10 |
GU23753710 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
|
14 |
GU95022112 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
15 |
GU92602512 - ECROU BAS M12X1,25 More informationQuantity required : 2 |
||||||
|
17 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 1 |
||||||
|
18 |
GU49609601 - COLLIER 2,4X92 More informationQuantity required : 1 |
