Vehicle Exploded View - MOTO-GUZZI GRISO 1200 Griso SE 1200 8V 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

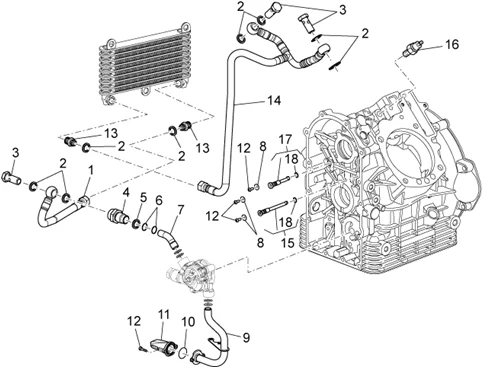

Moteur : 34.48 LUBRIFICATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/490/Griso_SE_1200_8V_2015_34.48.PNG)
1 |
874680 - TUBO MANDATA OLIO RADIATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/0/img/73410.jpg)
2 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD -GU01154230- More informationQuantity required : 8 |
||||||
|
3 |
874223 - BULLONE FOR ZG M14X1.5 More informationQuantity required : 3 |
||||||
|
4 |
874669 - NIPPLO More informationQuantity required : 1 |
||||||
|
5 |
976569 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/5/img/66465.jpg)
6 |
434947 - JOINT More informationQuantity required : 2 |
||||||
|
7 |
874646 - TUBO OLIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
8 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 3 |
||||||
|
9 |
B064018 - TUBO ASPIRAZIONE OLIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/2/img/70962.jpg)
10 |
969323 - BAGUE More informationQuantity required : 1 |
||||||
|
11 |
874655 - FILTRO OLIO ASPIRAZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/6/3/img/67663.jpg)
12 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER + MOTORBIKE -621914- More informationQuantity required : 5 |
||||||
|
13 |
GU01161331 - REDUCTION More informationQuantity required : 2 |
||||||
|
14 |
976686 - TUBAZIONE OLIO RAFFREDDAMENTO TESTA More informationQuantity required : 1 |
||||||
|
15 |
976680 - UGELLO OLIO CILINDRO SX COMPLETO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
16 |
SENSOR FOR OIL PRESSURE "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER AND MOTORBIKES (WITH ADAPTATOR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT) -1D001138- More informationQuantity required : 1 |
||||||
|
17 |
976681 - UGELLO OLIO CILINDRO DX COMPLETO More informationQuantity required : 1 |
||||||
|
18 |
874238 - ANELLO TEN.SEMIPUL.MOBILE More informationQuantity required : 4 |
