Vehicle Exploded View - MOTO-GUZZI GRISO 1200 Griso SE 1200 8V 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

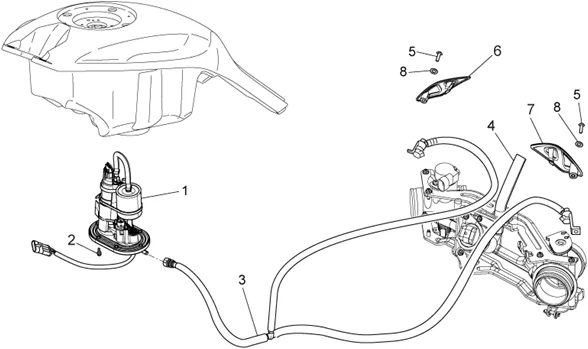

Chassis : 33.25 ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/490/Griso_SE_1200_8V_2015_33.25.PNG)
1 |
887423 - POMPA CARBURANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
2 |
AP8152273 - VIS BRIDE More informationQuantity required : 6 |
||||||
|
3 |
978745 - TUBAZ BENZINA More informationQuantity required : 1 |
||||||
|
4 |
GU05135930 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/1/img/133151.jpg)
5 |
GU98680222 - VIS More informationQuantity required : 2 |
||||||
|
6 |
883092 - PARAGINOCCHIO DX More informationQuantity required : 1 |
||||||
|
7 |
883093 - PARAGINOCCHIO SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/1/img/132681.JPG)
8 |
GU95008205 - RONDELLE 5,3X10X0,8 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
