Vehicle Exploded View - MOTO-GUZZI GRISO 1200 Griso SE 1200 8V 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

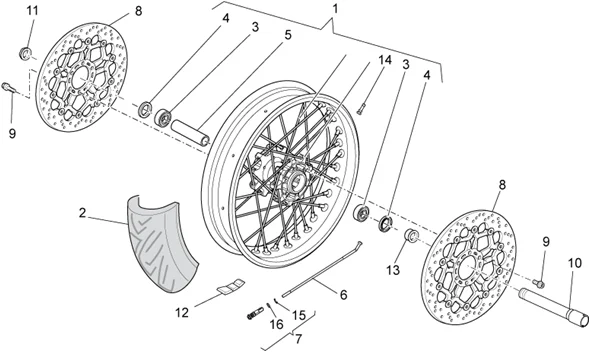

Chassis : 33.64 ROUE AV.SE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/490/Griso_SE_1200_8V_2015_33.64.PNG)
1 |
884163 - RUOTA ANT RAGGIATA (CERCHIO GIANT) More informationQuantity required : 1 |
||||||
|
2 |
1R000129 - PNEU 120/70 ZR 17M/C More informationQuantity required : 1 |
||||||
|
3 |
AP8125777 - ROULEMENT More informationQuantity required : 2 |
||||||
|
4 |
AP8125773 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
5 |
978516 - ENTRETOISE ROULEMENTS More informationQuantity required : 1 |
||||||
|
6 |
887084 - RAGGIO ANTERIORE More informationQuantity required : 36 |
||||||
|
7 |
978810 - NIPPLO SISTEMA STS More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/7/8/1/img/98781.jpg)
8 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" MOTO-GUZZI V7, V9, NEVADA, GRISO, BELLAGIO -883688- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
9 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152285- More informationQuantity required : 12 |
||||||
|
10 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 GRISO -978497- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
11 |
AP8152335 - ECROU DE ROUE More informationQuantity required : 1 |
||||||
|
11 |
AP8152335 - ECROU DE ROUE More informationQuantity required : 1 |
||||||
|
12 |
GU14616150 - CONTREPOIDS More informationQuantity required : 1 |
||||||
|
13 |
978498 - DISTANZIALE ESTERNO RUOTA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
14 |
TUBELESS TYRE VALVE "PIAGGIO GENUINE PART" COMMON FOR APRILIA /MOTO-GUZZI MOTORBIKES -AP8101744- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/7/6/6/img/100766.jpg)
15 |
SNAP RING FOR WHEEL NUT (TUBELESS) "PIAGGIO GENUINE PART" MOTO-GUZZI 940 BELLAGIO, 1400 ELDORADO, 1200 STELVIO, GRISO -978811- More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/0/8/img/132208.jpg)
16 |
SEAL RING GASKET- FRONT / REAR WHEEL (6,07X1,78) "PIAGGIO GENUINE PART" MOTO-GUZZI 1400 ELDORADO, 940 BELLAGIO, 1200 GRISO, STELVIO -GU90706061- More informationQuantity required : 36 |
