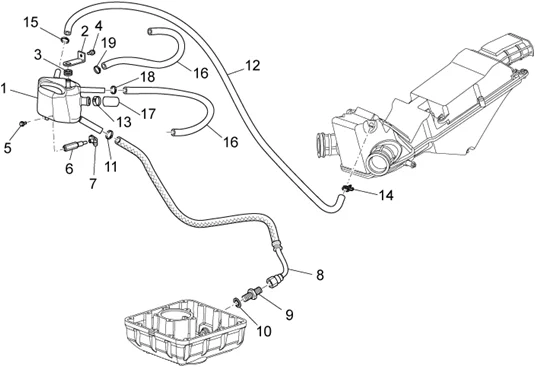

Chassis : 33.24 INSTALLATION BLOW-BY
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/490/Griso_SE_1200_8V_2015_33.24.PNG)
1 |
978767 - VASO ESPANSIONE BLOW-BY More informationQuantity required : 1 |
||||||
|
2 |
GU06412300 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
3 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
4 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
5 |
AP8152277 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
6 |
GU06164630 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
8 |
2B001410 - TUYAU More informationQuantity required : 1 |
||||||
|
9 |
GU01161331 - REDUCTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/0/img/73410.jpg)
10 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD -GU01154230- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/8/img/71198.jpg)
11 |
AP8102765 - COLLIER CLIC, BLANC More informationQuantity required : 1 |
||||||
|
12 |
GU00823955080 - TUBO TOA 175/70 8X13 More informationQuantity required : 1 |
||||||
|
13 |
GU93306018 - COLLIER 17X29X8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
14 |
AP8102520 - COLLIER SERR. TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/7/img/71197.jpg)
15 |
AP8102764 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/7/5/7/img/100757.jpg)
16 |
BREATHER HOSE "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 GRISO -978765- More informationQuantity required : 2 |
||||||
|
17 |
978781 - CAPPELLOTTO PER VASO BLOW-BY More informationQuantity required : 1 |
||||||
|
18 |
GU93306017 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/3/img/71153.jpg)
19 |
AP8101586 - COLLIER CLIC More informationQuantity required : 1 |
