Vehicle Exploded View - MOTO-GUZZI GRISO 1200 Griso SE 1200 8V 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

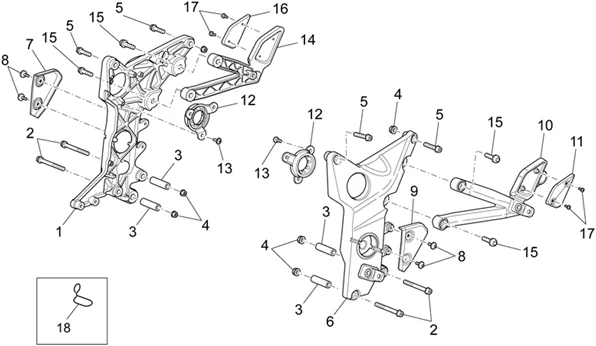

Chassis : 33.04 REPOSE-PIEDS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/490/Griso_SE_1200_8V_2015_33.04.PNG)
1 |
977052 - PIASTRA SUPP PEDANE DX More informationQuantity required : 1 |
||||||
|
2 |
GU98700475 - VIS TCC M8X75 More informationQuantity required : 4 |
||||||
|
3 |
AP8121805 - ENTRETOISE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
4 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/6/img/133216.jpg)
5 |
SCREW - FOR LUGGAGE RACK 8X30 "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 GRISO, NORGE, STELVIO -GU98700430- More informationQuantity required : 4 |
||||||
|
6 |
977053 - PIASTRA SUPP PEDANE SX More informationQuantity required : 1 |
||||||
|
7 |
GU06445900 - PROTECT.DTE More informationQuantity required : 1 |
||||||
|
8 |
GU98710215 - VIS M5X15 More informationQuantity required : 4 |
||||||
|
9 |
GU06445901 - PROTECT.GCHE More informationQuantity required : 1 |
||||||
|
10 |
GU06446000 - SUPPORT R-P. G More informationQuantity required : 1 |
||||||
|
11 |
GU06447501 - PROTECT.GCHE More informationQuantity required : 1 |
||||||
|
12 |
GU05446431 - BAGUE More informationQuantity required : 2 |
||||||
|
13 |
GU98350210 - VIS TBEI M5X10 More informationQuantity required : 6 |
||||||
|
14 |
GU06443500 - SUPPORT REPOSE-PIEDS DTE More informationQuantity required : 1 |
||||||
|
15 |
GU98700530 - VIS TCC M10X30 More informationQuantity required : 4 |
||||||
|
16 |
GU06447500 - PROTECT.DTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/2/img/133052.jpg)
17 |
GU98370412 - VIS M4X12 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/6/img/71396.JPG)
18 |
AP8120428 - GUIDE-CABLE SUP. More informationQuantity required : 1 |
