Vehicle Exploded View - MOTO-GUZZI GRISO 1200 Griso SE 1200 8V 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

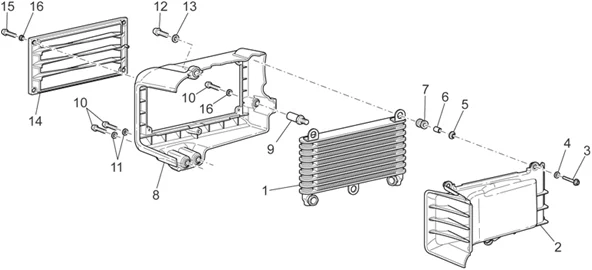

Chassis : 33.23 RADIATEUR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/490/Griso_SE_1200_8V_2015_33.23.PNG)
1 |
2B000892 - RADIATEUR HUILE More informationQuantity required : 1 |
||||||
|
2 |
GU06583200 - CONVOYEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
3 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 3 |
||||||
|
4 |
GU95005306 - RONDELLE 6,4X13X1,5 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
5 |
AP8121032 - DOUILLE More informationQuantity required : 3 |
||||||
|
6 |
GU91180711 - ENTRETOISE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
7 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
|
8 |
GU06583000 - COUVERCLE More informationQuantity required : 1 |
||||||
|
9 |
GU06583600 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/0/0/img/133200.jpg)
10 |
GU98690440 - VIS M8X40 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
11 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 3 |
||||||
|
12 |
GU98690540 - VITE TCEI IX M10X40 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
13 |
OIL PUMP SHAFT WASHER (10,5X16X1) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -AP8152220- More informationQuantity required : 1 |
||||||
|
14 |
GU06582600 - GRILLE DE RADIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/8/img/68948.jpg)
15 |
831153 - VIS M5X12 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.JPG)
16 |
AP8121811 - "DOUILLE EN ""T""" More informationQuantity required : 4 |
