Vehicle Exploded View - MOTO-GUZZI GRISO 1200 Griso SE 1200 8V 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

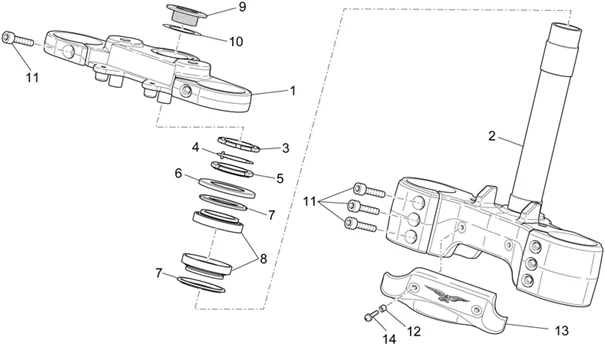

Chassis : 33.06 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/490/Griso_SE_1200_8V_2015_33.06.PNG)
1 |
GU06493100 - PLAQUE SUP. FOURCHE More informationQuantity required : 1 |
||||||
|
2 |
LOWER FORK YOKE"PIAGGIO GENUINE PARTS" MOTO GUZZI GRISO 1200 2007>2017 -GU06494000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/5/img/71525.jpg)
3 |
NUT - FOR STEERING COLUMN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA / MOTO-GUZZI -AP8123643- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/0/img/71450.jpg)
4 |
STEERING LOCK WASHER "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO -AP8121207- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/4/img/71524.JPG)
5 |
AP8123642 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/6/img/71526.jpg)
6 |
AP8123644 - ANNEAU PARE-POUSS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/3/img/71523.JPG)
7 |
AP8123641 - ANNEAU PARE-POUSS. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/0/8/2/img/176082.JPG)
8 |
2B007853 - THRUST BALL BEARING More informationQuantity required : 2 |
||||||
|
8 |
2B007853 - THRUST BALL BEARING More informationQuantity required : 2 |
||||||
|
8 |
2B007853 - THRUST BALL BEARING More informationQuantity required : 2 |
||||||
|
8 |
2B007853 - THRUST BALL BEARING More informationQuantity required : 2 |
||||||
|
9 |
AP8121346 - DOUILLE FX. PL. SUP.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/6/img/71976.jpg)
10 |
STEM PLUG WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI + APRILIA -AP8152384- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/6/img/133216.jpg)
11 |
SCREW - FOR LUGGAGE RACK 8X30 "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 GRISO, NORGE, STELVIO -GU98700430- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
12 |
AP8221036 - BAGUE 5,3X8X7,1 More informationQuantity required : 2 |
||||||
|
13 |
GU05658431 - PLA.FIX.TUBE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
14 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 2 |
