Vehicle Exploded View - APRILIA DORSODURO 750 -ABS-2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

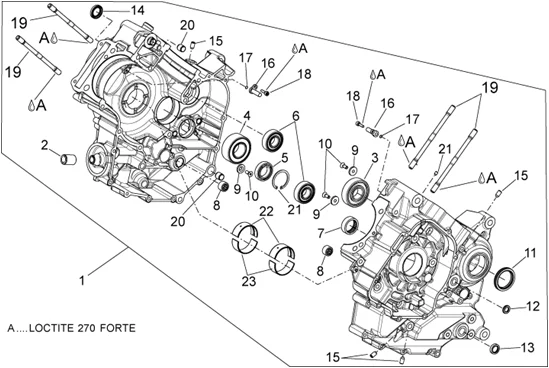

Moteur : 29.36 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/290/Dorsoduro_750-ABS-2008-2015_29.36.PNG)
1 |
B0144955001 - CARTER More informationQuantity required : 1 |
|||||||||
|
1 |
B0151515002 - CARTER More informationQuantity required : 1 |
|||||||||
|
1 |
1A0063002A - CARTER More informationQuantity required : 1 |
|||||||||
|
1 |
B0151485002 - CARTER More informationQuantity required : 1 |
|||||||||
|
1 |
B0151485001 - CARTER More informationQuantity required : 1 |
|||||||||
|
1 |
B0136305002 - CARTER More informationQuantity required : 1 |
|||||||||
|
1 |
B0136305001 - CARTER More informationQuantity required : 1 |
|||||||||
|
1 |
8786895002 - CARTER MOTEUR More informationQuantity required : 1 |
|||||||||
|
1 |
8786895001 - CARTER MOTEUR More informationQuantity required : 1 |
|||||||||
|
1 |
B0144955003 - CARTER More informationQuantity required : 1 |
|||||||||
|
1 |
B0144955002 - CARTER More informationQuantity required : 1 |
|||||||||
|
1 |
8498725004 - CARTER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/7/img/68817.jpg)
2 |
OIL FILTER UNION "PIAGGIO GENUINE PART" COMMON FOR MAXISCOOTERS 400-500 CC AND MOTO-GUZZI -829122- More informationQuantity required : 1 |
|||||||||
|
3 |
848651 - ROULEMENT More informationQuantity required : 1 |
|||||||||
|
4 |
848475 - ROULEMENT 30.62.23,8 More informationQuantity required : 1 |
|||||||||
|
5 |
872033 - ROULEMENT More informationQuantity required : 1 |
|||||||||
|
6 |
848650 - ROULEMENT More informationQuantity required : 2 |
|||||||||
|
7 |
1A018647 - DRAWN CUP NEEDLE More informationQuantity required : 1 |
|||||||||
|
7 |
974129 - CAGE A ROULEAUX; More informationQuantity required : 1 |
|||||||||
|
8 |
122671 - COQUILLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/0/8/img/70508.JPG)
9 |
873905 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
9 |
873928 - RONDELLE More informationQuantity required : 2 |
|||||||||
|
10 |
AP9150394 - (*)VITE TSPEI M6X12 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/0/4/5/img/39045.jpg)
11 |
848474 - CIRCLIPS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/0/img/68550.jpg)
12 |
CLUTCH COMMAND GASKET "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO, SHIVER -825577- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/0/1/img/43301.jpg)
13 |
974112 - CIRCLIPS 14.22.5 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/1/img/68801.jpg)
14 |
WATER PUMP GASKET (20X30X5) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -82897R- More informationQuantity required : 1 |
|||||||||
|
15 |
430136 - BOUCHON More informationQuantity required : 4 |
|||||||||
|
16 |
847537 - JET MAXIMUM More informationQuantity required : 2 |
|||||||||
|
17 |
487073 - JOINT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/7/img/66257.JPG)
18 |
292889 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/6/img/109026.jpg)
19 |
1A003631R - GOUJON More informationQuantity required : 8 |
|||||||||
|
20 |
974051 - GOUJON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/4/img/63824.jpg)
21 |
006642 - CIRCLIPS S00664200 More informationQuantity required : 1 |
|||||||||
|
22 |
9745050002 - SEMICUSCIN.DI More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/4/9/9/img/41499.jpg)
22 |
BEARING SHELL -- RED - "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008-2015 (PER UNIT) -8783940001- More informationQuantity required : 2 |
|||||||||
|
22 |
9745050004 - DEMI-COUSSINET SUP.CAT. E VERT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/0/1/img/41501.jpg)
22 |
BEARING SHELL -- YELLOW - UPPER "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008-2015 (PER UNIT) -8783940003- More informationQuantity required : 2 |
|||||||||
|
23 |
8793650002 - DEMI-ROULLEMENT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/3/7/img/41537.jpg)
23 |
BEARING SHELL - RED - "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008-2015 (PER UNIT) -8793650001- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/1/7/img/43317.jpg)
23 |
BEARING SHELL - YELLOW - LOWER "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008-2015 (PER UNIT) -9745060003- More informationQuantity required : 2 |
|||||||||
|
23 |
9745060004 - DEMI-COUSSINET INF. CAT E VERT More informationQuantity required : 2 |
|||||||||
