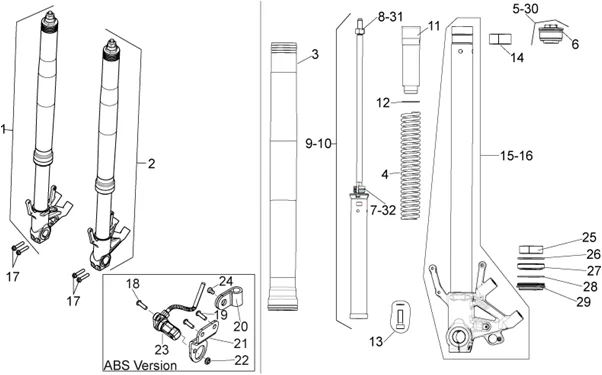

Vehicle Exploded View - APRILIA DORSODURO 750 -ABS-2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Chassis : 28.57 FORCELLA ANT. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/290/Dorsoduro_750-ABS-2008-2015_28.57.PNG)
1 |
COMPLETE RIGHT FORK LEG "PIAGGIO GENUINE PARTS" APRILIA DORSODURO 750 ABS 2008>2016 -897070- More informationQuantity required : 1 |
||||||
|
2 |
COMPLETE LEFT FORK LEG"PIAGGIO GENUINE PARTS" APRILIA DORSODURO 750 ABS 2008>2016 -897071- More informationQuantity required : 1 |
||||||
|
3 |
897328 - FOURREAU More informationQuantity required : 2 |
||||||
|
4 |
897329 - RESSORT More informationQuantity required : 2 |
||||||
|
5 |
898795 - GR. BOUCHON CPL. More informationQuantity required : 1 |
||||||
|
6 |
897335 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
7 |
898522 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
8 |
898797 - ECROU More informationQuantity required : 1 |
||||||
|
9 |
898793 - ELEM.POMPAGE CPL More informationQuantity required : 1 |
||||||
|
10 |
898796 - ELEM.POMPAGE CPL More informationQuantity required : 1 |
||||||
|
11 |
897332 - TUYAU PRECHARGE More informationQuantity required : 2 |
||||||
|
12 |
897336 - RONDELLE More informationQuantity required : 2 |
||||||
|
13 |
898794 - TIGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/5/img/42725.JPG)
14 |
897341 - BAGUE More informationQuantity required : 2 |
||||||
|
15 |
898521 - FOURREAU FOURCHE More informationQuantity required : 1 |
||||||
|
16 |
898520 - FOURREAU FOURCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
17 |
AP8152283 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
18 |
AP8152273 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/7/img/71857.jpg)
19 |
AP8150298 - VIS More informationQuantity required : 2 |
||||||
|
20 |
859777 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
21 |
856557 - PLAQUE AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
22 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.JPG)
23 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
||||||
|
23 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
24 |
AP8201749 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/6/img/42726.JPG)
25 |
897342 - DOUILLE DE COULISSEMENT More informationQuantity required : 2 |
||||||
|
26 |
897343 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/8/img/42728.jpg)
27 |
FORK OIL SEAL "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD -897344- More informationQuantity required : 2 |
||||||
|
28 |
897339 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/1/img/42721.jpg)
29 |
FORK DUST COVER - "PIAGGIO GENUINE PART" APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD -897337- More informationQuantity required : 2 |
||||||
|
30 |
897330 - GR. BOUCHON CPL. More informationQuantity required : 1 |
||||||
|
31 |
897331 - ECROU More informationQuantity required : 1 |
||||||
|
32 |
897340 - JOINT TORIQUE More informationQuantity required : 1 |
