Vehicle Exploded View - APRILIA DORSODURO 750 -ABS-2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

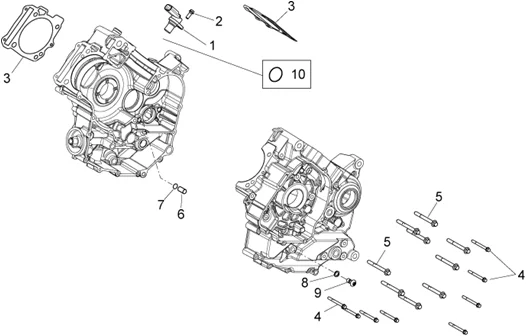

Moteur : 29.37 CARTERS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/290/Dorsoduro_750-ABS-2008-2015_29.37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/2/8/img/69028.jpg)
1 |
SPEEDOMETER SENSOR "PIAGGIO GENUINE PART" 125-300 X10, BEVERLY, 125-250 X-EVO/APRILIA 850 SRV, 750 DORSODURO, SHIVER -8329635- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/0/img/70430.jpg)
2 |
872432 - VIS More informationQuantity required : 1 |
||||||
3 |
CM154102 - JOINT More informationQuantity required : 1 |
||||||
|
3 |
CM154104 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/7/7/5/img/62775.jpg)
3 |
CM154101 - JOINT More informationQuantity required : 1 |
||||||
|
4 |
874548 - VIS BRIDE More informationQuantity required : 8 |
||||||
|
5 |
848465 - VIS More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
6 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956- More informationQuantity required : 1 |
||||||
|
7 |
834317 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
8 |
849244 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/3/img/66703.jpg)
9 |
GASKET FOR DRAIN CAP OR MANOMETER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -486075- More informationQuantity required : 1 |
||||||
|
10 |
430044 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
