Vehicle Exploded View - APRILIA DORSODURO 750 -ABS-2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

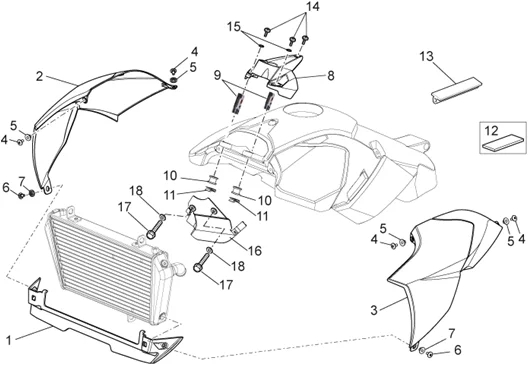

Chassis : 28.11 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/290/Dorsoduro_750-ABS-2008-2015_28.11.PNG)
1 |
856860 - CANALISATION More informationQuantity required : 1 |
|||||||||
|
2 |
85682500XD6 - AILE D More informationQuantity required : 1 |
|||||||||
|
2 |
85682500XE4 - AILE D, SILVER More informationQuantity required : 1 |
|||||||||
|
2 |
85682500XN5 - AILE D,NOIR More informationQuantity required : 1 |
|||||||||
|
2 |
85682500XN6 - CONVOYEUR DRT. NOIR More informationQuantity required : 1 |
|||||||||
|
2 |
85682500XR4 - FLANC D, ROUGE More informationQuantity required : 1 |
|||||||||
|
2 |
85682500XV5 - FLANC D, VERT More informationQuantity required : 1 |
|||||||||
|
2 |
85682500Z1 - FLANC D, BLANC/NOIR More informationQuantity required : 1 |
|||||||||
|
2 |
85682500Z2 - FLANC D, VERT/NOIR More informationQuantity required : 1 |
|||||||||
|
2 |
85682500BM - FLANC DROITE, BLANC More informationQuantity required : 1 |
|||||||||
|
2 |
85682500R7 - FLANC G, ROUGE More informationQuantity required : 1 |
|||||||||
|
2 |
85682500XB9 - AILE D More informationQuantity required : 1 |
|||||||||
|
2 |
85682500Z5 - FLANC D, NOIR More informationQuantity required : 1 |
|||||||||
|
3 |
85682400XE4 - AILE G, SILVER More informationQuantity required : 1 |
|||||||||
|
3 |
85682400XD6 - AILE G More informationQuantity required : 1 |
|||||||||
|
3 |
85682400XN6 - FLANC G, NOIR More informationQuantity required : 1 |
|||||||||
|
3 |
85682400XR4 - FLANC G, ROUGE More informationQuantity required : 1 |
|||||||||
|
3 |
85682400XV5 - FLANC G, VERT More informationQuantity required : 1 |
|||||||||
|
3 |
85682400Z1 - FLANC G. BLANC/NOIR More informationQuantity required : 1 |
|||||||||
|
3 |
85682400Z5 - FLANC G, NOIR More informationQuantity required : 1 |
|||||||||
|
3 |
85682400BM - FLANC G. BLANC More informationQuantity required : 1 |
|||||||||
|
3 |
FRONT LEFT SIDE BODY "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008>2016 BLACK -85682400XN5- More informationQuantity required : 1 |
|||||||||
|
3 |
85682400R7 - FLANC G, ROUGE More informationQuantity required : 1 |
|||||||||
|
3 |
85682400XB9 - AILE G More informationQuantity required : 1 |
|||||||||
|
3 |
85682400Z2 - FLANC G, VERT/NOIR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
4 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
5 |
AP8121725 - "DOUILLE EN ""T""" More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/0/img/71390.JPG)
7 |
AP8120253 - ENTRETOISE More informationQuantity required : 2 |
|||||||||
|
8 |
856823 - PLANCHE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/7/7/8/img/40778.jpg)
9 |
SPACER- FOR FUEL TANK MOUNTING "PIAGGIO GENUINE PART" APRILIA 750-900 DORSODURO, 900 SHIVER -860137- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
10 |
AP8144328 - CAOUTCHOUC More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
12 |
AP8117033 - ADHESIVE SPONGE More informationQuantity required : 2 |
|||||||||
|
13 |
AP8117275 - GUARNIZIONE ANTICALORE More informationQuantity required : 2 |
|||||||||
|
14 |
SPACER- FOR FUEL TANK MOUNTING "PIAGGIO GENUINE PART" APRILIA 750-900 DORSODURO, 900 SHIVER -860137- More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/1/img/50941.jpg)
15 |
AP8152037 - RONDELLE FER PLATE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/1/1/img/41711.JPG)
16 |
890421 - PROTECTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
17 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/7/6/img/46976.JPG)
18 |
AP8121991 - DOUILLE; More informationQuantity required : 2 |
|||||||||
