Vehicle Exploded View - APRILIA DORSODURO 750 -ABS-2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

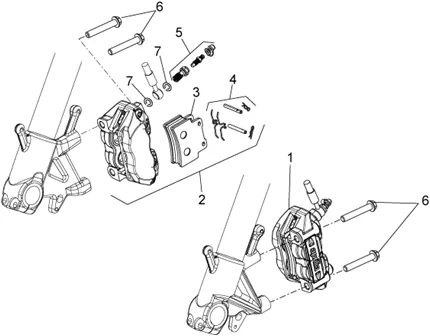

Chassis : 28.27 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/290/Dorsoduro_750-ABS-2008-2015_28.27.PNG)
1 |
851724 - PINCE FREIN AV G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/5/1/1/img/149511.JPG)
2 |
AP8133841 - PINZA FRENO ANT.ORO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/1/img/71691.jpg)
3 |
BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO 2008> FRONT, 1200 CAPONORD 2014> FRONT, SHIVER 2007> FRONT, 850 MANA 2007> FRONT, 125 RS 2006>2010 FRONT (PAIR) -AP8133943- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/8/6/6/img/48866.JPG)
4 |
AP8133944 - PERNO E MOLLA PINZA ANT. More informationQuantity required : 2 |
||||||
|
5 |
AP8133945 - KIT SPURGO ANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/3/img/71983.jpg)
6 |
SCREW - BRAKE CALIPER FASTENING (M10X1.25X55) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4, TUONO, 750 SHIVER, DORSODURO/MOTO-GUZZI 1400 CALIFORNIA, 1200 STELVIO, GRISO -AP8152414- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
7 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
