Vehicle Exploded View - APRILIA DORSODURO 750 -ABS-2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

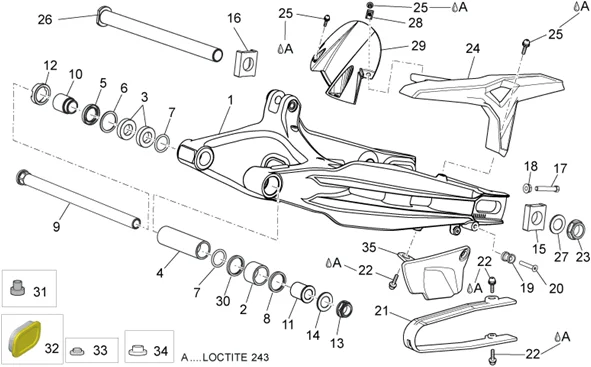

Chassis : 28.08 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/290/Dorsoduro_750-ABS-2008-2015_28.08.PNG)
1 |
85623200ZEN - FOURCHE AR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/9/img/45829.JPG)
2 |
AP8110078 - CAGE A ROULEAUX More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/9/5/img/41595.jpg)
3 |
BEARING FOR REAR SUPENSION ARM "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, 1100 RSV-4, TUONO V4, 750-900-1200 DORSODURO, 1200 CAPONORD -890002- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/7/0/img/46870.jpg)
4 |
AP8121570 - DISTANZIALE INTERNO PERNO FORC More informationQuantity required : 1 |
|||||||||
|
5 |
AP8144006 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/8/img/46748.jpg)
6 |
AP8121204 - BAGUE SEEGER POUR ORIFICE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/8/9/img/49589.jpg)
7 |
AP8144048 - JOINT TORIQUE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/7/3/img/49573.JPG)
8 |
GASKET RING FOR SWINGING ARM AXLE (LEFT) "PIAGGIO GENUINE PART" APRILIA CAPONORD 1200 2015>2017, DORSODURO 750-900-1200 2010>2017, RSV4 1000 2009>2018 -AP8144005- More informationQuantity required : 1 |
|||||||||
|
9 |
AP8146520 - PERNO FORCELLONE More informationQuantity required : 1 |
|||||||||
|
10 |
AP8121200 - DOUILLE DE REGLAGE More informationQuantity required : 1 |
|||||||||
|
11 |
AP8121203 - DOU.INT.TIGE FOURCHE More informationQuantity required : 1 |
|||||||||
|
12 |
AP8121201 - BAGUE PIVOT FOURCHE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/7/img/47747.jpg)
13 |
NUT - FOR REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA CAPONORD, DORSODURO, TUONO, RS, FUTURA -AP8125763- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/3/5/img/47735.JPG)
14 |
AP8125687 - RONDELLE AXE ROUE AR; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/6/img/97076.jpg)
15 |
RIGHT CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" APRILIA DORSODURO, SHIVER, RSV-2, RSV-4, TUONO -AP8144443- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/7/7/img/97077.jpg)
16 |
RIGHT CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" APRILIA DORSODURO, SHIVER, RSV-2, RSV-4, TUONO -AP8144444- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/2/img/71962.jpg)
17 |
AP8152305 - VIS REGLAGE T-CHA?NE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.JPG)
18 |
2B004511 - ECROU More informationQuantity required : 2 |
|||||||||
|
18 |
2B004511 - ECROU More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/8/img/71498.jpg)
19 |
AP8121890 - DOUILLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/1/5/2/img/177152.JPG)
20 |
1B006381 - COUNTERSUNK HEAD TORX SCREW More informationQuantity required : 2 |
|||||||||
|
20 |
1B006381 - COUNTERSUNK HEAD TORX SCREW More informationQuantity required : 2 |
|||||||||
|
21 |
AP8144168 - GALET GUIDE-CHA?NE; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
22 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/8/img/71968.jpg)
23 |
NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8152324- More informationQuantity required : 1 |
|||||||||
|
24 |
856787 - CARTER CHA?NE More informationQuantity required : 1 |
|||||||||
|
25 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/6/1/img/62561.jpg)
26 |
REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA 750-900-1200 DORSODURO 2008>2018, 750-900 SHIVER 2007>2018 -B045422- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
27 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8152323- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
28 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 1 |
|||||||||
|
29 |
859764 - GARDE-BOUE ARRIERE More informationQuantity required : 1 |
|||||||||
|
30 |
890126 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/7/img/49637.jpg)
31 |
RUBBER SPACER "PIAGGIO GENUINE PART" APRILIA DORSODURO, RSV-2, RSV-4, TUONO -AP8144158- More informationQuantity required : 2 |
|||||||||
|
32 |
860898 - BOUCHON More informationQuantity required : 1 |
|||||||||
|
33 |
860899 - BOUCHON More informationQuantity required : 2 |
|||||||||
|
34 |
860900 - BOUCHON More informationQuantity required : 2 |
|||||||||
|
35 |
859929 - GALET GUIDE-CHA?NE More informationQuantity required : 1 |
|||||||||
