Vehicle Exploded View - APRILIA DORSODURO 750 -ABS-2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

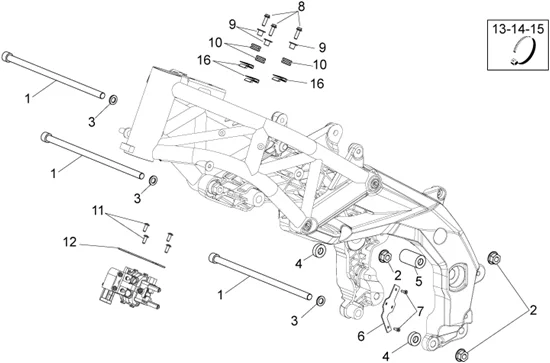

Chassis : 28.02 CHASSIS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/290/Dorsoduro_750-ABS-2008-2015_28.02.PNG)
1 |
851784 - TIRANT PRISE MOTEUR; More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
2 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/3/7/img/50837.jpg)
3 |
AP8150101 - WASHER More informationQuantity required : 3 |
||||||
|
4 |
853036 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
5 |
853035 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
6 |
854942 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
7 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
8 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
9 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
10 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
|
11 |
860382 - VIS TARAUD More informationQuantity required : 4 |
||||||
|
12 |
853213 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.JPG)
13 |
AP8120422 - COLLIER, NOIR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.JPG)
14 |
AP8120657 - COLLIER More informationQuantity required : 3 |
||||||
|
15 |
AP8102386 - FASCETTA IN NYLON NERA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 3 |
