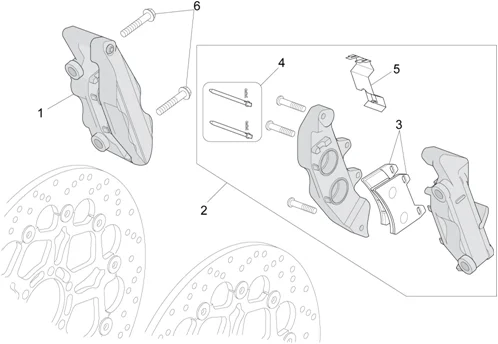

Système frein abs : 06.020 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/470/California_1400_Custom_ABS_2012-2013_06.020.PNG)
1 |
883385 - PINZA FRENO ATACCO RADIALE DX More informationQuantity required : 1 |
||||||
|
2 |
883384 - PINZA FRENO ATTACCO RADIALE SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/8/img/70748.jpg)
3 |
FRONT BRAKE PADS - "PIAGGIO GENUINE PART" MOTO-GUZZI 1400 CALIFORNIA 2012>, AUDACE 2015>, ELDORADO 2015>, 1200 STELVIO, 750 V-7 STONE, V-7 RACER (PAIR) -883673- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/2/6/img/101926.jpg)
4 |
PIN+CALIPER SPRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU01659130- More informationQuantity required : 2 |
||||||
|
5 |
GU01659131 - MOLLA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/3/img/71983.jpg)
6 |
SCREW - BRAKE CALIPER FASTENING (M10X1.25X55) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4, TUONO, 750 SHIVER, DORSODURO/MOTO-GUZZI 1400 CALIFORNIA, 1200 STELVIO, GRISO -AP8152414- More informationQuantity required : 4 |
