Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Custom ABS 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

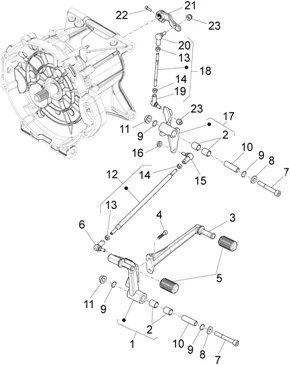

Moteur : 03.020 LEVIER VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/470/California_1400_Custom_ABS_2012-2013_03.020.PNG)
1 |
B063035 - LEVA COMANDO CAMBIO CON PI More informationQuantity required : 1 |
||||||
|
2 |
895328 - BUSSOLA SINTERIZZATA More informationQuantity required : 2 |
||||||
|
3 |
B063751 - LEVA COMANDO CAMBIO More informationQuantity required : 1 |
||||||
|
4 |
GU98682325 - VIS TCEI M6X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/7/img/129167.JPG)
5 |
GU13432640 - PEDALE EN CAOUTCH. More informationQuantity required : 2 |
||||||
|
6 |
898397 - ROTULE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/2/img/73572.jpg)
7 |
GU98680460 - VIS M8X60 More informationQuantity required : 2 |
||||||
|
8 |
GU95008308 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
9 |
AP8144007 - JOINT TORIQUE More informationQuantity required : 4 |
||||||
|
10 |
B063903 - DISTANZIALE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
11 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 2 |
||||||
|
12 |
887510 - TIRANTE COMPLETO CAMBIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
13 |
AP8150026 - ECROU More informationQuantity required : 1 |
||||||
|
13 |
AP8150026 - ECROU More informationQuantity required : 1 |
||||||
|
14 |
GU31256881 - ECROU More informationQuantity required : 1 |
||||||
|
15 |
898396 - ROTULE More informationQuantity required : 1 |
||||||
|
16 |
GU92630707 - ECROU M6X1 More informationQuantity required : 1 |
||||||
|
17 |
887318 - (*)LEVA RINVIO CAMBIO CON PI More informationQuantity required : 1 |
||||||
|
18 |
B063639 - TIRANTE COMPLETO CAMBIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
19 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI ET APRILIA -AP8210007- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/8/img/71268.jpg)
20 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA /MOTO-GUZZI -AP8110053- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/6/7/5/img/128675.jpg)
21 |
GEARBOX SELECTOR LINK "PIAGGIO GENUINE PART" 850-1100-1200 BREVA, 850-1200 NORGE, 1200 SPORT -GU05256930- More informationQuantity required : 1 |
||||||
|
22 |
GU98682320 - VIS M6X20 More informationQuantity required : 1 |
||||||
|
23 |
GU92630206 - ECROU M6X1 More informationQuantity required : 2 |
