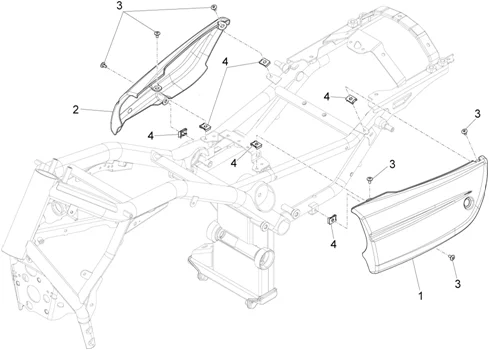

Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Custom ABS 2012-2013 MOTO-GUZZI

Carrosserie : 02.100 CARROSSERIE CENTRALE
Carrosserie centrale
Search
887991 - FIANCHETTO SX GREZZO

1
P2R reference P2R reference 99654
Maker reference Maker reference 887991

887991 - FIANCHETTO SX GREZZO

More information

Quantity required : 1
88799100XN2 - (*)FIANCHETTO SX NERO COMP

1
P2R reference P2R reference 99656
Maker reference Maker reference 88799100XN2

88799100XN2 - (*)FIANCHETTO SX NERO COMP

More information

Quantity required : 1
88799100YE5 - FIANCHETTO SX METALLO

1
P2R reference P2R reference 99657
Maker reference Maker reference 88799100YE5

88799100YE5 - FIANCHETTO SX METALLO

More information

Quantity required : 1
887990 - FIANCHETTO DX GREZZO

2
P2R reference P2R reference 99648
Maker reference Maker reference 887990

887990 - FIANCHETTO DX GREZZO

More information

Quantity required : 1
88799000XN2 - (*)FIANCHETTO DX NERO COMP

2
P2R reference P2R reference 99652
Maker reference Maker reference 88799000XN2

88799000XN2 - (*)FIANCHETTO DX NERO COMP

More information

Quantity required : 1
88799000YE5 - FIANCHETTO DX GRIGIO METALLO

2
P2R reference P2R reference 99653
Maker reference Maker reference 88799000YE5

88799000YE5 - FIANCHETTO DX GRIGIO METALLO

More information

Quantity required : 1
SCREW - (5x9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

3
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339-

More information

Quantity required : 6
248419 - PLAQUETTE PLASTIQUE

4
P2R reference P2R reference 65998
Maker reference Maker reference 248419

248419 - PLAQUETTE PLASTIQUE

More information

Quantity required : 6
