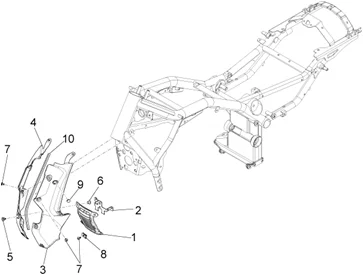

Chassis : 01.040 PROTECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/470/California_1400_Custom_ABS_2012-2013_01.040.PNG)
1 |
B063902 - GRIGLIA ANTERIORE More informationQuantity required : 1 |
||||||
|
2 |
B064001 - STAFFA More informationQuantity required : 1 |
||||||
|
3 |
B063717 - COPERTURA CANNOTTO SX More informationQuantity required : 1 |
||||||
|
4 |
B063716 - COPERTURA CANNOTTO DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
5 |
CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
6 |
AP8144563 - RIVETTO IN PLASTICA MASCHIO More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
7 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500- More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
8 |
248419 - PLAQUETTE PLASTIQUE More informationQuantity required : 2 |
||||||
|
9 |
2B000217 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/3/3/4/img/101334.jpg)
10 |
GU00823931080 - GASKET PVC More informationQuantity required : 1 |
