Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Custom ABS 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

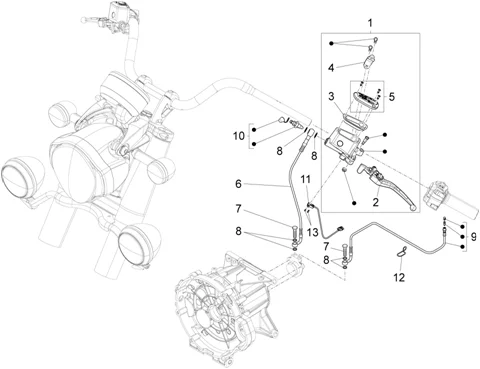

Commandes : 07.030 COMMANDE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/470/California_1400_Custom_ABS_2012-2013_07.030.PNG)
1 |
887550 - POMPA FRIZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/2/8/5/img/101285.jpg)
2 |
CLUTCH LEVER- "PIAGGIO GENUINE PART" MOTO-GUZZI CALIFORNIA 2012>, AUDACE 2015>, ELDORADO 2015> -B064265- More informationQuantity required : 1 |
||||||
|
3 |
858424 - DIAPHRAGME More informationQuantity required : 1 |
||||||
|
4 |
856050 - CAVALIER More informationQuantity required : 1 |
||||||
|
5 |
B064106 - COPERCHIO POMPA FRENO More informationQuantity required : 1 |
||||||
|
6 |
2B000093 - TUBAZIONE COMANDO FRIZIONE More informationQuantity required : 1 |
||||||
|
7 |
AP8121409 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
AP8113004 - RONDELLE More informationQuantity required : 6 |
||||||
|
9 |
887339 - TUBO SPURGO FRIZIONE More informationQuantity required : 1 |
||||||
|
10 |
AP8133945 - KIT SPURGO ANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/4/9/9/img/99499.JPG)
11 |
887629 - INTERRUTTORE FRIZIONE DIAGNOSTICABILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
12 |
AP8120416 - COLLIER, NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/5/0/img/68250.jpg)
13 |
654174 - VIS More informationQuantity required : 2 |
