Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Custom ABS 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

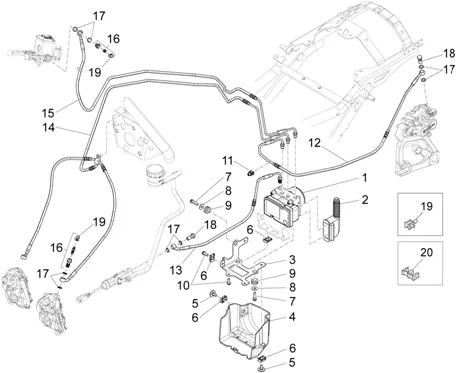

Système frein abs : 06.050 SYSTEME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/470/California_1400_Custom_ABS_2012-2013_06.050.PNG)
1 |
2D000193 - CENTRALE More informationQuantity required : 1 |
||||||
|
2 |
860746 - CAPUCHON ISOLANT More informationQuantity required : 1 |
||||||
|
3 |
B063211 - PIASTRA SUPPORTO CENTALINA ABS More informationQuantity required : 1 |
||||||
|
4 |
887798 - COPERCHIO INFERIORE ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/8/8/img/99888.jpg)
5 |
SCREW - FOR ROCKER COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -976591- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
7 |
AP8152280 - VIS BRIDE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
8 |
AP8150015 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
9 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
10 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 3 |
||||||
|
11 |
AP8121882 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
12 |
887585 - TUBO FRENO PINZA POST-CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
13 |
887584 - TUBO FRENO POMPA POST-CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
14 |
887583 - TUBO PINZE ANT-CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
15 |
2B000089 - TUBO FRENO POMPA ANT-CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
16 |
AP8133945 - KIT SPURGO ANT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
17 |
AP8113004 - RONDELLE More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
18 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
|
19 |
AP8113070 - CAPUCHON RENIFLARD More informationQuantity required : 2 |
||||||
|
19 |
AP8202238 - ANCRAGE GUIDE-CABLE; More informationQuantity required : 2 |
||||||
|
20 |
AP8201808 - GUIDE-CABLE More informationQuantity required : 2 |
