Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Custom ABS 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

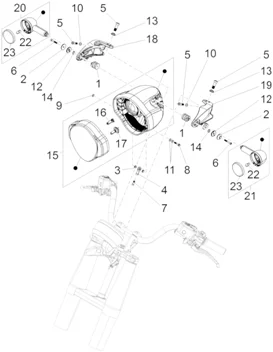

Feux - instruments : 08.010 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/470/California_1400_Custom_ABS_2012-2013_08.010.PNG)
1 |
887698 - DISTANZIALE ROTAZIONE FANALE ANT More informationQuantity required : 2 |
||||||
|
2 |
2B000141 - BUSSOLA FORATA More informationQuantity required : 2 |
||||||
|
3 |
GU91120605 - BAGUE More informationQuantity required : 2 |
||||||
|
4 |
887921 - TESTA A SNODO M6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
5 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.JPG)
6 |
AP8150045 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
7 |
SCREW - (6X35) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150285- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
8 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 1 |
||||||
|
9 |
GU92630206 - ECROU M6X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.JPG)
10 |
AP8150014 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
11 |
AP8150015 - RONDELLE More informationQuantity required : 2 |
||||||
|
12 |
887697 - RONDELLA CURVATA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/2/img/71902.JPG)
13 |
AP8150536 - ROSETTA SPECIALE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/0/img/63810.jpg)
14 |
CIRCLIP FOR DRIVE PULLEY "PIAGGIO GENUINE PART" PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 -006410- More informationQuantity required : 2 |
||||||
|
15 |
887453 - FANALE ANTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/2/img/66272.JPG)
16 |
294353 - AMPOULE 12V-55W H7 More informationQuantity required : 1 |
||||||
|
17 |
294278 - AMPOULE 12V 55W H3 More informationQuantity required : 1 |
||||||
|
18 |
2B000151 - SUPPORTO FANALE ANT DX More informationQuantity required : 1 |
||||||
|
19 |
2B000152 - SUPPORTO FANALE ANT SX More informationQuantity required : 1 |
||||||
|
20 |
B063028 - INDICATORE DIREZIONE ANT DX More informationQuantity required : 1 |
||||||
|
21 |
B063029 - INDICATORE DIREZIONE ANT SX More informationQuantity required : 1 |
||||||
|
22 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 1 |
||||||
|
23 |
2D000007 - TRASPARENTE PER FRECCIA ANTERIORE More informationQuantity required : 2 |
