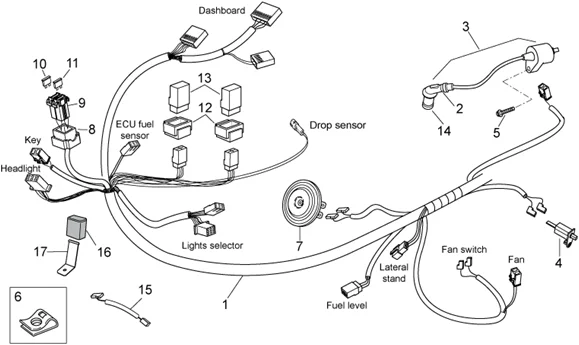

Chassis : 28.36 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/240/Atlantic_125_E3_2010-2012_28.36.PNG)
1 |
AP8127630 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/6/img/66266.jpg)
2 |
SPARK PLUG CAP "PIAGGIO GENUINE PART"COMMON TO ALL THE MAXISCOOTER RANGE -293845- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/4/img/68574.jpg)
3 |
IGNITION COIL "PIAGGIO GENUINE PART" 125 BEVERLY, LIBERTY, SUPER HEXAGON, VESPA GTS, VESPA LX/APRILIA 125 ATLANTIC, SPORT-CITY, SCARABEO -82597R- More informationQuantity required : 1 |
||||||
|
4 |
AP8212696 - INTERR. ECLAIR.COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/7/img/69697.jpg)
5 |
855799 - VIS BRIDE M5X0,8 L.28 EX 7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 1 |
||||||
|
7 |
AP8127337 - KLAXON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/7/img/71277.JPG)
8 |
AP8112811 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 1 |
||||||
|
9 |
AP8120754 - CAOUTCHOUC P-FUSIBLES More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
10 |
252945 - FUSIBLE 7,5A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
11 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.JPG)
12 |
AP8220283 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
13 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/4/img/68734.jpg)
14 |
SPARK PLUG CAM CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -828210- More informationQuantity required : 1 |
||||||
|
15 |
AP8127568 - CABLAGGIO INTERMITTENZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
16 |
FLASHER UNIT "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER + MAXISCOOTER APRILIA + MOTO 125 CC -AP8124235- More informationQuantity required : 1 |
||||||
|
17 |
AP8134967 - SUPPORTO INTERMITTENZA More informationQuantity required : 1 |
