Vehicle Exploded View - APRILIA ATLANTIC 125 E3 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

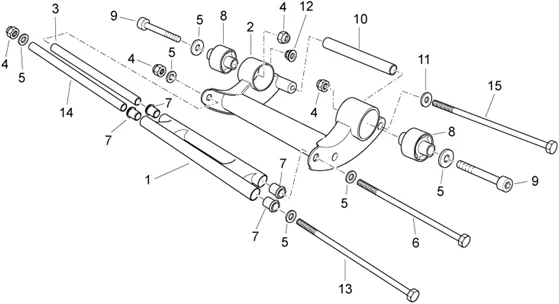

Chassis : 28.02 EMBIELLAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/240/Atlantic_125_E3_2010-2012_28.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/4/1/img/50041.jpg)
1 |
FRAME COUPLING ROD "PIAGGIO GENUINE PART" APRILIA 125-250-300 ATLANTIC -AP8146548- More informationQuantity required : 1 |
||||||
2 |
AP8146898 - BIELLETTA ATTACCO MOTORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/6/5/img/46865.jpg)
3 |
SPACER- FOR SUSPENSON ARM "PIAGGIO GENUINE PART" APRILIA 125-250-300 ATLANTIC -AP8121561- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/4/img/71884.jpg)
4 |
AP8150432 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/9/img/71909.jpg)
5 |
AP8152018 - RONDELLE FER PLATE More informationQuantity required : 4 |
||||||
|
6 |
AP8121627 - AXE FIXATION BIELLETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/7/9/img/45179.jpg)
7 |
AP8102538 - DOUILLE EN RESINE More informationQuantity required : 4 |
||||||
|
8 |
AP8144598 - SILENTBLOC; More informationQuantity required : 2 |
||||||
|
9 |
AP8150345 - VIS More informationQuantity required : 2 |
||||||
|
10 |
AP8121628 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
11 |
AP8150020 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
12 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
13 |
AP8121528 - AXE FIXATION CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/8/6/6/img/46866.jpg)
14 |
SPACER- FOR SUSPENSON ARM "PIAGGIO GENUINE PART" APRILIA 125-250-300 ATLANTIC -AP8121562- More informationQuantity required : 1 |
||||||
|
15 |
AP8121598 - PIVOT SUPPORT MOTEUR; More informationQuantity required : 1 |
