Vehicle Exploded View - APRILIA ATLANTIC 125 E3 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

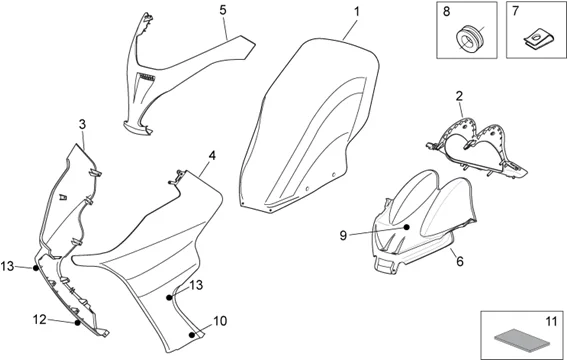

Chassis : 28.07 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/240/Atlantic_125_E3_2010-2012_28.07.PNG)
1 |
WIND SHIELD "PIAGGIO GENUINE PART" PIAGGIO APRILIA 125-300 ATLANIC 2010> -672084- More informationQuantity required : 1 |
||||||
|
2 |
67222000XEN - PLANCHE More informationQuantity required : 1 |
||||||
|
3 |
67701100XD2 - AILE D More informationQuantity required : 1 |
||||||
|
3 |
67701100XH2 - AILE D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/9/3/8/img/38938.jpg)
3 |
FRONT SHIELD - RIGHT "PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC 2010>2012 BLACK COMPETITION -67701100XN2- More informationQuantity required : 1 |
||||||
|
3 |
67701100Z1 - AILE D More informationQuantity required : 1 |
||||||
|
4 |
67701200Z1 - AILE G More informationQuantity required : 1 |
||||||
|
4 |
FRONT SHIELD - LEFT "PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC BLACK COMPETITION -67701200XN2- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/9/4/1/img/38941.jpg)
4 |
FRONT SHIELD - LEFT "PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC 2010>2012 GREY SHOT -67701200XH2- More informationQuantity required : 1 |
||||||
|
4 |
67701200XD2 - AILE G More informationQuantity required : 1 |
||||||
|
5 |
UPPER FRONT BONNET "PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC 2010> RACING BLACK -63599400XND- More informationQuantity required : 1 |
||||||
|
5 |
63599400XEN - COFFRE AV. More informationQuantity required : 1 |
||||||
|
5 |
63599400XD3 - COFFRE AV. More informationQuantity required : 1 |
||||||
|
5 |
UPPER FRONT BONNET "PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC 2010> WHITE GLAM -63599400XB5- More informationQuantity required : 1 |
||||||
|
6 |
67221900XEN - PLANCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
7 |
AP8102381 - CLIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/7/img/71407.JPG)
8 |
AP8120594 - SILENTBLOC More informationQuantity required : 4 |
||||||
|
9 |
677003 - PLAQUE More informationQuantity required : 1 |
||||||
|
10 |
67700600A1 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/9/2/6/img/38926.jpg)
10 |
677006 - DECALCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
11 |
AP8117033 - ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/9/2/4/img/38924.jpg)
12 |
677005 - DECALCO More informationQuantity required : 1 |
||||||
|
12 |
67700500A1 - DECALCO More informationQuantity required : 1 |
||||||
|
13 |
677001 - PLAQUE More informationQuantity required : 1 |
