Vehicle Exploded View - APRILIA ATLANTIC 125 E3 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

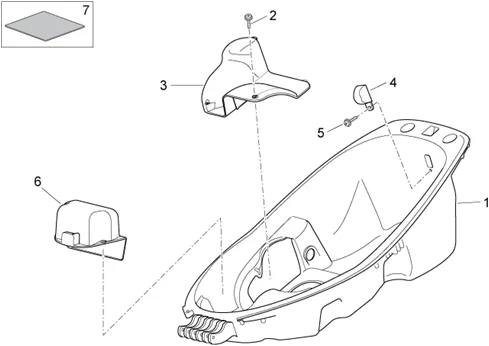

Chassis : 28.11 DESSOUS SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/240/Atlantic_125_E3_2010-2012_28.11.PNG)
1 |
AP8179447 - VANO PORTACASCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
2 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 2 |
||||||
|
3 |
AP8178619 - COPERCHIO ACCESSO TESTA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/0/5/img/56305.jpg)
4 |
AP8212733 - GLACE LAMPE COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 1 |
||||||
|
6 |
AP8158394 - COUVERCLE BATTERIE; More informationQuantity required : 1 |
||||||
|
7 |
AP8144288 - EMBOUT APPUI BATTERIE LAT. More informationQuantity required : 1 |
