Vehicle Exploded View - APRILIA ATLANTIC 125 E3 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Chassis : 28.03 BEQUILLE

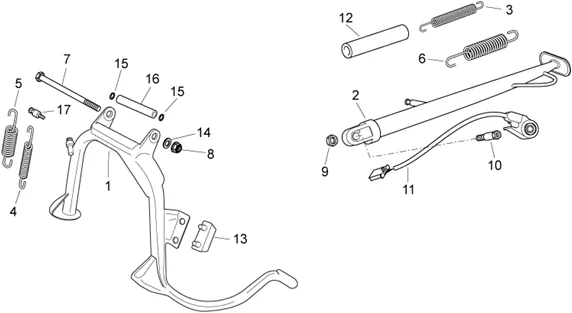

/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/240/Atlantic_125_E3_2010-2012_28.03.PNG)
1 |
AP8146659 - BEQUILLE CENTRALE; More informationQuantity required : 1 |
||||||
|
2 |
AP8146643 - BEQUILLE LATERALE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/4/img/72304.jpg)
3 |
AP8221211 - RESS.RETOUR BEQ.INT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/6/img/67266.jpg)
4 |
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -582850- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/7/img/67267.jpg)
5 |
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250 CC -582851- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/3/img/72303.jpg)
6 |
SPRING - FOR CENTRAL STAND"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO -AP8221204- More informationQuantity required : 1 |
||||||
|
7 |
AP8150438 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
8 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
9 |
NUT - FOR SIDE STAND (10X1,25) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA /MOTO-GUZZI -AP8152001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/3/img/71503.jpg)
10 |
SCREW - FOR SIDE STAND FASTENING "PIAGGIO GENUINE PARTS" COMMON TO THE APRILIA/ MOTO-GUZZI MOTORBIKES -AP8121994- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/8/7/img/69687.jpg)
11 |
STAND SWITCH "PIAGGIO GENUINE PART" APRILIA ATALANTIC 125-300-400, SCARABEO 400-500, CAPONORD, RS 125, RS 50, RSV 1000, TUONO 1000/MOTO GUZZI BREVA, NEVADA -00N05700601- More informationQuantity required : 1 |
||||||
|
12 |
AP8120855 - PROT.RESS.CAP.CENT. More informationQuantity required : 1 |
||||||
|
13 |
AP8144729 - TAMPONE DI APPOGGIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
14 |
AP8150020 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
15 |
STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/1/img/67251.jpg)
16 |
SPACER- FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -582298- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/3/img/66643.jpg)
17 |
483785 - PIVOT RESSORT DE BEQUILLE More informationQuantity required : 1 |
