Vehicle Exploded View - APRILIA ATLANTIC 125 E3 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

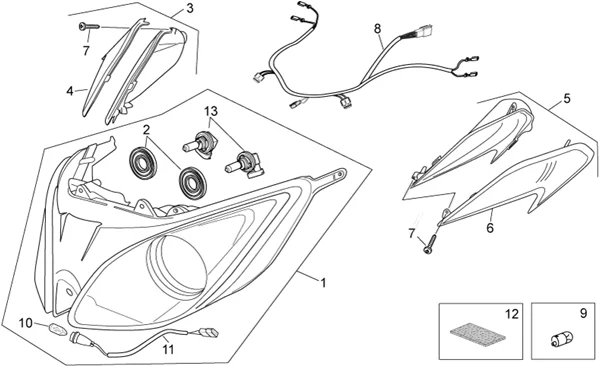

Chassis : 28.34 FEU AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/240/Atlantic_125_E3_2010-2012_28.34.PNG)
1 |
854894 - PHARE AVT ATLANTIQUE More informationQuantity required : 1 |
||||||
|
2 |
AP8127442 - COIFFE PHARE; More informationQuantity required : 2 |
||||||
|
3 |
642100 - CLIGNOTANT More informationQuantity required : 1 |
||||||
|
4 |
642137 - TRANSPARENT More informationQuantity required : 1 |
||||||
|
5 |
642101 - CLIGNOTANT More informationQuantity required : 1 |
||||||
|
6 |
642138 - TRANSPARENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/7/img/65437.jpg)
7 |
018536 - VIS More informationQuantity required : 2 |
||||||
|
8 |
AP8127248 - CABLAGE FEU AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
9 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/1/img/67791.jpg)
10 |
LIGHT BULB 12V16W "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -638536- More informationQuantity required : 1 |
||||||
|
11 |
AP8127488 - CABLES FEU DE POSITION More informationQuantity required : 1 |
||||||
|
12 |
AP8144529 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/9/8/img/67898.jpg)
13 |
LIGHT BULB (12V - 55W H11) "PIAGGIO GENUINE PART" 50-125 APRILIA RS, 1000 RSV-4, CAPONORD, PEGASO, TUONO -640754- More informationQuantity required : 2 |
