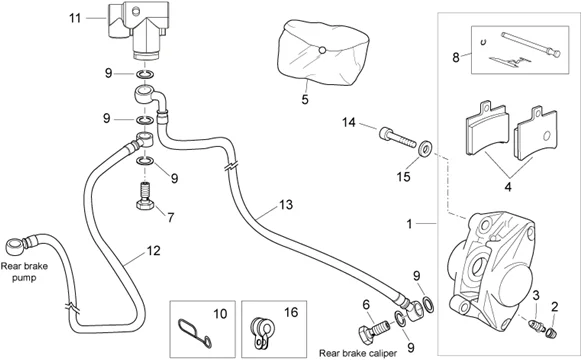

Chassis : 28.33 PINCE FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/240/Atlantic_125_E3_2010-2012_28.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/6/1/7/img/38617.jpg)
1 |
FRONT BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC 2010> -666358- More informationQuantity required : 1 |
||||||
2 |
AP8213575 - CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
||||||
|
3 |
AP8213574 - SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/1/img/72221.jpg)
4 |
REAR BRAKE PADS-"PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC 2010> (PAIR) -AP8213577- More informationQuantity required : 1 |
||||||
|
5 |
AP8213579 - KIT REVISIONE PINZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
6 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
|
7 |
597633 - RACCORD TUYAU DE FREIN M27 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/2/img/72222.jpg)
8 |
REAR BRAKE SPRING KIT "PIAGGIO GENUINE PART" APRILIA 125-250-300 SPORT-CITY, ATLANTIC, SCARABEO -AP8213578- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
9 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
|
10 |
AP8202159 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
11 |
666353 - VOLET DE GAZ More informationQuantity required : 1 |
||||||
|
12 |
858233 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
13 |
666992 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/7/img/71827.JPG)
14 |
AP8150164 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
15 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/4/2/img/71642.jpg)
16 |
AP8132907 - COLLIER; More informationQuantity required : 1 |
