Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

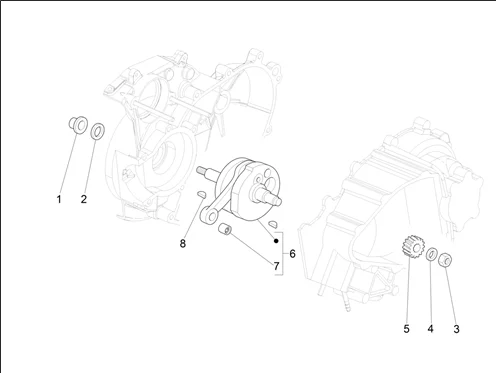

Moteur : 01.06 VILEBREQUIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_01.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/0/0/img/65600.jpg)
1 |
021112 - ECROU S02111200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/2/img/65352.jpg)
2 |
012555 - RONDELLE FREIN S01255500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/5/1/5/img/114515.jpg)
3 |
482748 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/5/9/img/63759.jpg)
4 |
001821 - RONDELLE S00182100 More informationQuantity required : 1 |
||||||
5 |
2452374 - PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/0/5/7/img/122057.jpg)
6 |
CRANKSHAFT "PIAGGIO GENUINE PART" 50 APE -8462675 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/8/1/img/66981.jpg)
7 |
PISTON CAGE "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, ZIP 2 STROKE/APRILIA 50 SR MOTARD 2 STROKE/GILERA 50 RUNNER/VESPA LX 2 STROKE, PRIMAVERA 2 STROKE -500501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/8/2/img/66982.jpg)
7 |
PISTON CAGE "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, ZIP 2 STROKE/APRILIA 50 SR MOTARD 2 STROKE/GILERA 50 RUNNER/VESPA LX 2 STROKE, PRIMAVERA 2 STROKE -500502 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/8/3/img/66983.jpg)
7 |
PISTON CAGE "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, ZIP 2 STROKE/APRILIA 50 SR MOTARD 2 STROKE/GILERA 50 RUNNER/VESPA LX 2 STROKE, PRIMAVERA 2 STROKE -500503 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/8/4/img/66984.jpg)
7 |
PISTON CAGE "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, ZIP 2 STROKE/APRILIA 50 SR MOTARD 2 STROKE/GILERA 50 RUNNER/VESPA LX 2 STROKE, PRIMAVERA 2 STROKE -500504 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
8 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267 More informationQuantity required : 1 |
