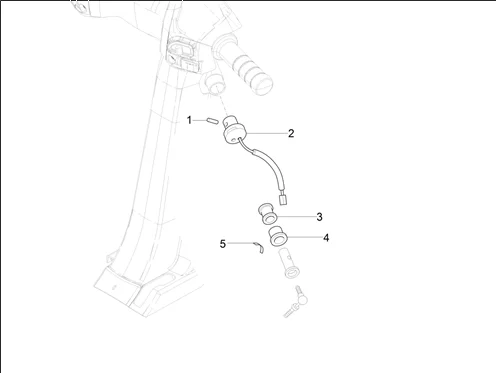

Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021 PIAGGIO VU

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
Serrures
Search
018515 - VIS S01851500

1
P2R reference P2R reference 65435
Maker reference Maker reference 0185155

018515 - VIS S01851500

More information

Quantity required : 1
IGNITION KEY SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 APE -291582-

2
P2R reference P2R reference 118169
Maker reference Maker reference 291582

IGNITION KEY SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 APE -291582-

More information

Quantity required : 1
LOCK BLOCK "PIAGGIO GENUINE PART" VESPA 125 PX, 50 TYPHOON, NRG, APE -178562-

3
P2R reference P2R reference 65785
Maker reference Maker reference 178562

LOCK BLOCK "PIAGGIO GENUINE PART" VESPA 125 PX, 50 TYPHOON, NRG, APE -178562-

More information

Quantity required : 1
B023653 - CORPS ANTIVOL

4
P2R reference P2R reference 112185
Maker reference Maker reference B023653

B023653 - CORPS ANTIVOL

More information

Quantity required : 1
KEY LOCK PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -178559-

5
P2R reference P2R reference 65784
Maker reference Maker reference 178559

KEY LOCK PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -178559-

More information

Quantity required : 1
LOCK KIT- WITH FUEL TANK CAP "PIAGGIO GENUINE PART" APE -B023231-

6
P2R reference P2R reference 119854
Maker reference Maker reference B023231

LOCK KIT- WITH FUEL TANK CAP "PIAGGIO GENUINE PART" APE -B023231-

More information

Quantity required : 1
